Manufacturer:
Murata

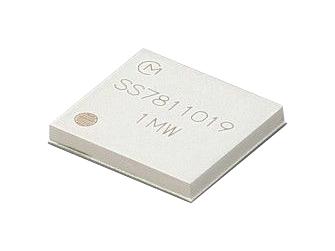

LBEE5HY1MW230
Multiprotocol Module, Bluetooth 5.0, IEEE 802.11a/b/g/n/ac, 2.4835GHz, 5.825GHz, 3.2V to 4.2V
Avnet Manufacturer Part #:
LBEE5HY1MW-230
RoHS 6 Compliant
Multiprotocol Module, Bluetooth 5.0, IEEE 802.11a/b/g/n/ac, 2.4835GHz, 5.825GHz, 3.2V to 4.2V
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Supply Voltage Range | 3.2V to 4.2V |
|
|
Working Frequency | 2.4GHz to 2.4835GHz, 5.18GHz to 5.825GHz, 2.402GHz to 2.48GHz |
|
|
Module Dimensions | 7.9mm x 7.3mm x 1.1mm |
|
|
Operating Temperature Range | -30°C to 85°C |
|
|
Protocol 2 | Bluetooth 5.0 |
|
|
Protocol 1 | IEEE 802.11a/b/g/n/ac |
|
|
Integrated Antenna | No |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | 5A992.c |
