Manufacturer:
Murata
Product Category:
Inductors,
SMD Common Mode Chokes

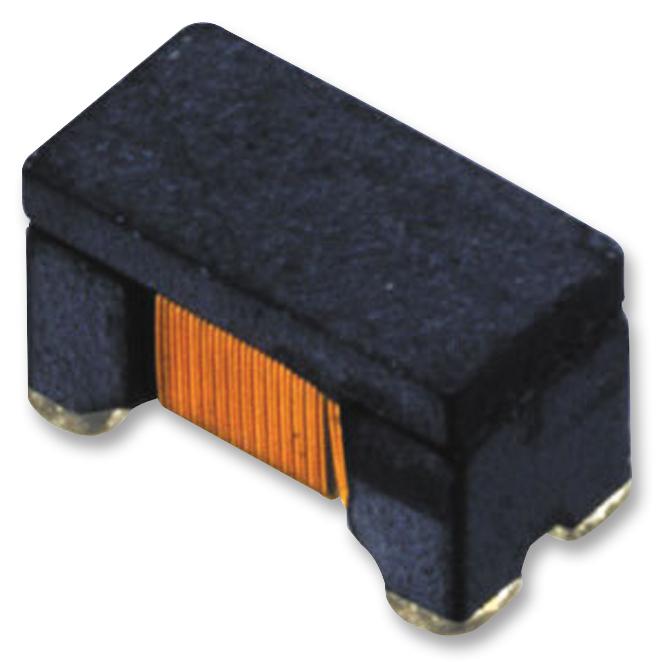

DLW21SN900SQ2L
Choke, Common Mode, 90 Ohm, 330 mA, 0805 [2012 Metric]
Avnet Manufacturer Part #:
DLW21SN900SQ2L
RoHS 10 Compliant
The DLW21S series are wire wound common mode chokes. DLW21S series enables noise suppression for differential signal line without distortion in high speed signal transmission due to its high coupling. Typical applications include USB lines of PC, peripheral equipment, LVDS lines of Note PCs, LCDs and USB lines of small digital AV equipment such as digital cameras.
Key Features
- 2.0mm x 1.2mm x 1.2mm case size
- Operating temperature range -40°C to +85°C
- Common mode impedance range from 67ohm to 500 ohm at 100MHz
- High common mode impedance at high frequency effects excellent noise suppression performance
- Rated voltage of 50VDC
- Minimum insulation resistance of 10Mohm
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Product Range | DLW21S Series |
|
|
DC Current Rating | 330 mA |
|
|
Impedance | 90 Ohm |
|
|
Inductor Case / Package | 0805 [2012 Metric] |
|
|
Product Width | 1.2 mm |
|
|
Product Length | 2 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
