Manufacturer:
Molex
22-28-4033

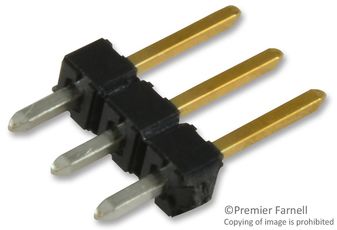

Conn Unshrouded Header 3 POS 2.54mm Solder Straight Through Hole
Avnet Manufacturer Part #:
0022284033
RoHS 10 Compliant
Conn Unshrouded Header 3 POS 2.54mm Solder Straight Through Hole
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Gender | Header |
|
|
Number of Rows | 1 |
|
|
Body Orientation | Straight |
|
|
Product Length | 7.62 mm |
|
|
Contact Material | Brass |
|
|
Termination Method | Solder |
|
|
Housing Color | Black |
|
|
Base/Housing Material | Nylon |
|
|
Pitch | 2.54 mm |
|
|
Type | Unshrouded |
|
|
Max Processing Temp | 260 |
|
|
Maximum Current Rating/Contact | 4 A |
|
|
Number of Contacts | 3 |
|
|
Lead Finish | Tin Over Nickel |
|
|
Contact Plating | Gold Over Nickel |
|
|
Maximum Contact Resistance | 10 mOhm |
|
|
Operating Temperature | -40 to 80 to 75 °C |
|
|
Mounting | Through Hole |
|
|
Product Dimensions | 7.62 x 2.49 x 8.38 mm |
|
|
Series Name | 42375 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8536.69.40.40 |
| HTSN: | 8536.69.40.40 |
