Manufacturer:
Molex

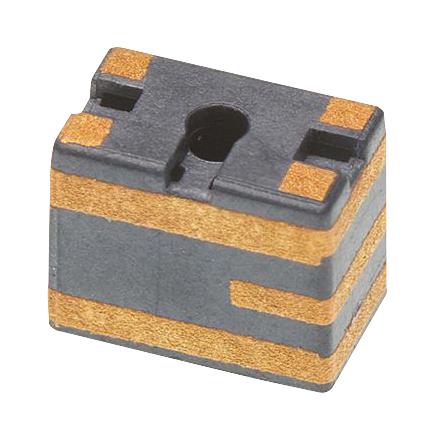

146175-0001
Chip Antenna, Dual Band, Linear, 2.4 GHz to 2.485 GHz, 5.15 GHz to 5.85 GHz, Surface Mount
Avnet Manufacturer Part #:
1461750001
RoHS 10 Compliant
Chip Antenna, Dual Band, Linear, 2.4 GHz to 2.485 GHz, 5.15 GHz to 5.85 GHz, Surface Mount
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Antenna Polarisation | Linear |
|
|
Operating Temperature Min | -40 °C |
|
|
Impedance | 50 Ohm |
|
|
Maximum Frequency | 2483.5|5850 MHz |
|
|
Operating Temperature Max | 125 °C |
|
|
Protocol | BLE, Bluetooth, WiFi, Wireless Hart, Zigbee |
|
|
Frequency Range | 2.4GHz to 2.485GHz, 5.15GHz to 5.85GHz |
|
|
Product Range | 146175 Series |
|
|
Gain | 4.2dB |
|
|
Antenna Mounting | SMD |
|
|
Antenna Type | Chip |
|
|
Antenna Band | Dual Band |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8536904000 |
| HTSN: | 8537109170 |
