Manufacturer:
ITT Interconnect Solutions
MDSM-9PE-Z10-VR25
D Sub Connector, Micro D, Plug, MDSM, 9 Contacts, Solder
Avnet Manufacturer Part #:
MDSM-9PE-Z10-VR25
Secondary Manufacturer Part #: 121661-1039
RoHS 10 Exempt
NCNR

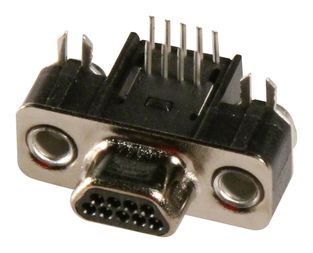

The MDSM-9PE-Z10-VR25 is a 9-way through-hole PCB Connector is designed with gold-plated copper contacts. The MDSM series plug is designed for situations where space and EMI shielding are the primary design drivers.
Key Features
- Rugged construction
- Unique contact design
- -55 to +125°C Operating temperature range
- UL94V-0 Flammability rating
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Product Dimensions | 19.9 x 18.1 x 8 mm |
|
|
Number of Terminals | 9 |
|
|
Contact Material | Copper Alloy |
|
|
Pitch | 1.2700 mm |
|
|
Operating Temperature | -55 to 125 °C |
|
|
Contact Plating | Gold |
|
|
Body Orientation | Right Angle |
|
|
Number of Ports | 1 |
|
|
Type | D-Subminiature |
|
|
Mounting | Through Hole |
|
|
Number of Contacts | 9 POS |
|
|
Base/Housing Material | Steel |
|
|
Termination Method | Solder |
|
|
Gender | Pin |
|
|
Product Length | 19.9 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
