Manufacturer:
iNRCORE
Product Category:
Transformers,
Pulse Transformers

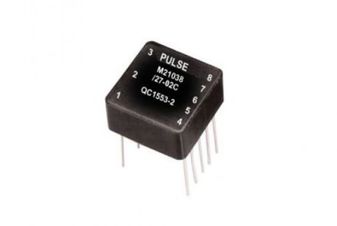

Q1553-2
TRANSFORMER PBC
Avnet Manufacturer Part #:
Q1553-2
RoHS Non-Compliant
TRANSFORMER PBC
Key Features
- Qualified for use in QPL MIL-STD-1553 applications
- Single ratio packages, see schematics
- Designed, built, and tested to MIL-PRF-21038 Levels C, M, and T
- package C is 4-lead; package D is 6-lead (center tap)
- built in ISO 9002 facility
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Lead Finish | Tin-Lead |
|
|
Operating Temperature | -55 to 130 °C |
|
|
Mounting | Through Hole |
|
|
Lead Style | Pin |
|
|
High Potential | 100 Vrms |
|
|
Package Type | DIP |
|
|
Turns Ratio | 1.4:1/2:1 |
|
|
Product Dimensions | 15.88 x 15.88 x 6.35 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8504312000 |
| HTSN: | 8504312000 |
