Manufacturer:
Eaton
PTS181224V150

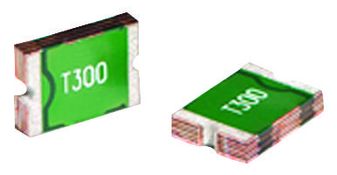

SMD Resettable Fuse, PPTC, 1812 (4532 Metric), PTS1812, 24 VDC, 1.5 A, 3 A, 1.5 s
Avnet Manufacturer Part #:
PTS181224V150
RoHS 10 Compliant
SMD Resettable Fuse, PPTC, 1812 (4532 Metric), PTS1812, 24 VDC, 1.5 A, 3 A, 1.5 s
Key Features
- Positive Temperature Coefficient (PTC)
- SMT resettable device
- Low resistance
- Fast time-to-trip
- Current range from 0.1A to 3.0A
- 1812 (4532 metric) compact footprint
- Halogen free, lead free, RoHS compliant
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Maximum Post Trip Resistance | 0.2 Ohm |
|
|
Operating Temperature Min | -40 °C |
|
|
Product Length | 4.73 mm |
|
|
Operating Temperature Max | 85 °C |
|
|
Maximum Voltage Rating | 33 Vdc |
|
|
Mounting | Surface Mount |
|
|
Product Range | PTS1812 Series |
|
|
Approvals | cULus/TUV |
|
|
Number of Terminals | 2 |
|
|
Voltage Rating | 24 Vdc |
|
|
Typical Power Dissipation | 0.8 W |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
Documents
Please log in to view more information.
Documents
| Title | Download | Type | Date Published |
|---|---|---|---|
| Change of specifications on specific PTS Resettable Devices | PCN-Documentation | 20191106 |
