Manufacturer:
Avnet Engineering Services
Product Category:
Kits & Tools,
Evaluation & Development Kits
AES-A7MB-7A35T-G

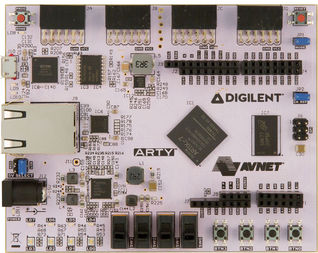

Arty Artix-7 low-cost FPGA Development Board
Avnet Manufacturer Part #:
AES-A7MB-7A35T-G
Secondary Manufacturer Part #: ADXAES-A7MB-7A35T-G
RoHS 6 Compliant
NCNR
The Artix-7 35T FPGA Evaluation Kit, designed by Avnet and Digilent, is a completely customizable development kit perfect for embedded designers looking for a flexible, low-power platform. The Artix-7 35T FPGA evaluation board is a complete system, packaging all the necessary functions and interfaces needed for an embedded processor system onto a small footprint. This board is the perfect solution for designers interested in exploring the MicroBlaze soft processor or Artix-7 FPGAs in general.
Experienced FPGA users will find the Artix-7 35T FPGA evaluation board a valuable tool for general purpose prototyping and testing. The included peripherals and expansion interfaces make the kit ideal for a wide variety of applications. From experimenting with Arduino shields to integrating multiple sensors to running a Linux-based web server, the Artix-7 35T FPGA evaluation board can help you validate your next design idea.
Experienced FPGA users will find the Artix-7 35T FPGA evaluation board a valuable tool for general purpose prototyping and testing. The included peripherals and expansion interfaces make the kit ideal for a wide variety of applications. From experimenting with Arduino shields to integrating multiple sensors to running a Linux-based web server, the Artix-7 35T FPGA evaluation board can help you validate your next design idea.
Key Features
- Xilinx XC7A35T-L1CSG324I
- 256 MB DDR3 SDRAM
- 16 MB of QSPI Flash
- 10/100 Ethernet Interface
- 4 Digilent compatible Pmod interfaces enabling 32 user I/O pins
- 2 Pmods routed as differential pairs
- Paired to fit dual-wide Pmods - USB-UART Interface
- 14 AMS inputs
- 4 user RGB LEDs
- 4 user LEDs
- 4 user slide switches
- 4 user push button switches
- 100 MHz LVCMOS Oscillator (system clock)
- JTAG Programming/Configuration Port
- Arduino R3 shield interface
- Digilent chipKit interface
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Type | Programmable Logic Tools |
|
|
Category | Programmable Logic Tools |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | 3A992.a |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
Documents
Please log in to view more information.
Documents
| Title | Download | Type | Date Published |
|---|---|---|---|
| Arty Board Schematics | Schematics | 20151013 | |
| AES-A7MB-7A35T-G Quick Start Card | User-Guides | 20170327 | |
| Arty Board XDC files (Rev B) | Support-and-Download-Files | 20151013 | |
| AES-MMP-BB2-G Block Diagram | Block-Diagram | 20170217 | |
| Product Brief for AES-A7MB-7A35T-G | Product-Guides | 20170621 | |
| Arty EthernetLite LwIP Applications Example Design (Vivado 2015.2) | Support-and-Download-Files | 20151013 | |
| AES-A7MB-7A35T-G User Guide | User-Guides | 20170418 | |
| Arty Out-Of-Box GPIO Demo Design (Vivado 2015.2) | Support-and-Download-Files | 20151013 | |
| AES-A7MB-7A35T-G User Guide | User-Guides | 20170418 | |
| Arty QSPI SREC Bootloader Example Design (Vivado 2015.2) | Support-and-Download-Files | 20151013 | |
| AES-A7MB-7A35T-G User Guide | User-Guides | 20170418 |
