Manufacturer:
Amphenol

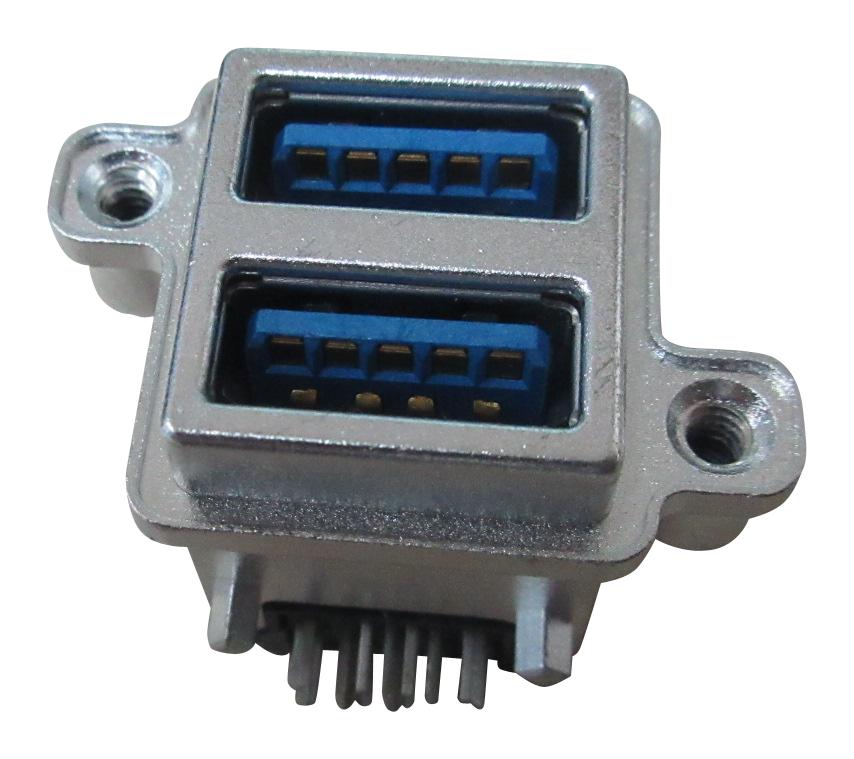

MUSBR-4193-M0
USB Sealed Connector, Right Angle, Rugged, Stacked, 2Ports, USB Type A, USB 3.0, Receptacle
Avnet Manufacturer Part #:
MUSBR-4193-M0
RoHS 6 Compliant
Amphenol's MUSBR series USB Connectors is a line of Generation 2 ruggedized USB connectors with die cast housings and IP67 sealing, designed for Harsh Environment applications. Rugged series provide reliable performance in extreme conditions for the most demanding applications, and mate with standard USB plugs.
Key Features
- IP67 sealing protects against water and dust
- Die cast metal housings protect against mechanical damage
- Compact design saves panel space
- Operating temperature range from -55°C to +105°C for extreme conditions
- Internal and external seals made with flexible silicone rubber
- Non-polarized Type C connector interface
- Allows mating plug to be inserted in either orientation to ease mating
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Number of Contacts | 18 POS |
|
|
Gender | Receptacle |
|
|
Lead Finish | Matte Tin over Nickel |
|
|
Body Orientation | Right Angle |
|
|
Contact Plating | Gold |
|
|
Product Dimensions | 30 x 24.35 x 21 mm |
|
|
Product Length | 30 mm |
|
|
Pitch | 2.0000 mm |
|
|
Base/Housing Material | Thermoplastic |
|
|
Operating Temperature | -40 to 105 °C |
|
|
Type | USB Type A |
|
|
Number of Terminals | 18 |
|
|
Pin Count | 18 |
|
|
Contact Material | Copper Alloy|Phosphor Bronze |
|
|
Number of Ports | 2 |
|
|
Mounting | Panel Mount |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8536694040 |
| HTSN: | 8536694040 |
