Manufacturer:
Amphenol
Product Category:
Connectors,
Memory Card Connectors
GSD090012SEU

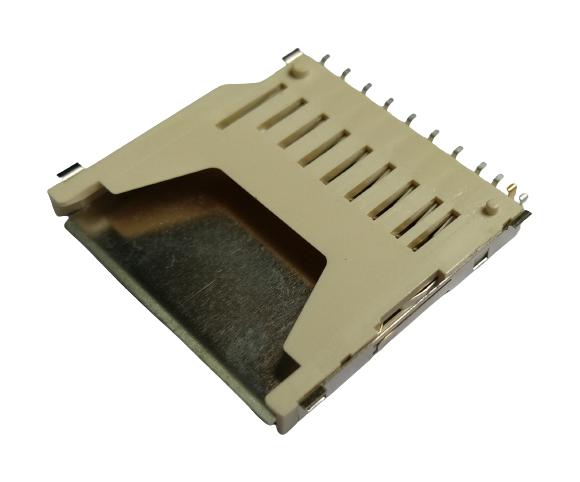

Memory Card Connector, SD, Push-Pull, 9 Contacts, Phosphor Bronze, Gold Plated Contacts, GSD
Avnet Manufacturer Part #:
GSD090012SEU
RoHS 6 Compliant
GSD090012SEU is a push pull SD card socket. It has the capability to support customized designs. The push-push reject feature is designed for ease of card extraction. The user-friendly SD card socket is ideal for use in portable devices such as digital cameras and mobile phone, server applications as well as automotive devices. Target market/application includes infotainment, mobile phone, tablet virtual reality camera, server, storage.
Key Features
- 2.70mm ultra thin card socket, compatible with second reflow process
- Extremely low camber after reflow process, shielding for superior EMI/ESD
- Can be used for printed circuit board (PCB) 2 sided SMT
- Superior solderability performance
- Space-saving design
- Shielded design for superior electromagnetic interference and electromagnetic discharge
- Superior signal integrity (SI) performance
- Simple card lock mechanism
- Prevents card from ejecting and card scrape prevention
- High temperature thermoplastic, complies with UL 94V-0 housing
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Lead Finish | Tin |
|
|
Gender | Receptacle |
|
|
Product Length | 28 mm |
|
|
Termination Method | Solder |
|
|
Contact Plating | Gold |
|
|
Body Orientation | Straight |
|
|
Product Dimensions | 28 x 25 x 2.85 mm |
|
|
Number of Rows | 2 |
|
|
Mounting | Surface Mount |
|
|
Type | SD Card |
|
|
Pin Count | 9 |
|
|
Contact Material | Phosphor Bronze |
|
|
Number of Contacts | 9 POS |
|
|
Base/Housing Material | LCP (Liquid Crystal Polymer) |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8536694040 |
| HTSN: | 8536694040 |
