Manufacturer:
Amphenol

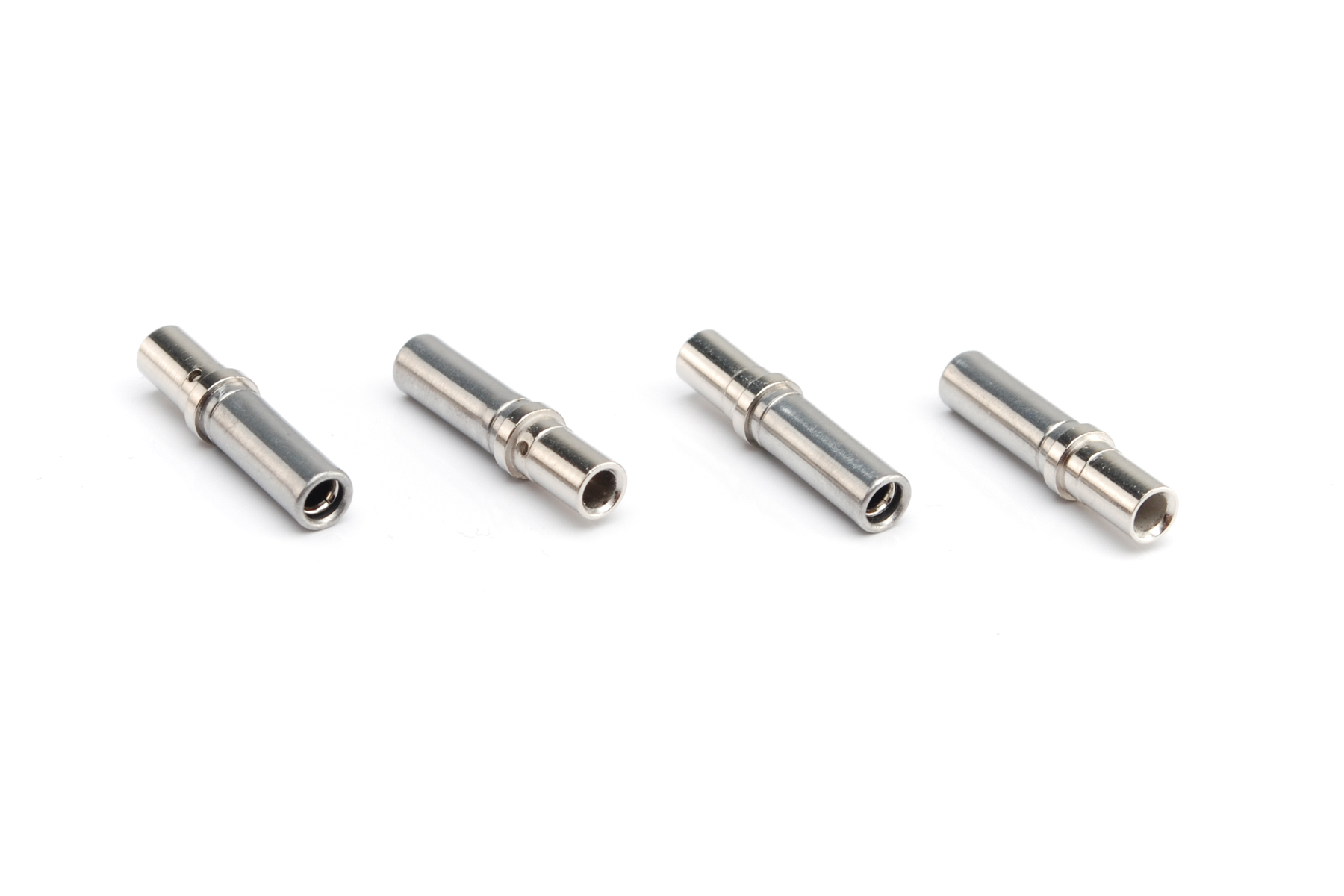

AT62-201-16141
Circular Contact Socket Crimp ST Cable Mount
Avnet Manufacturer Part #:
AT62-201-16141
RoHS 10 Compliant
AT62-201-16141 is a 16-size solid machined standard socket crimp contact for use with AT, ATV, AHD-9, ARC, Duram ate™, PanelMate™ connectors.
Key Features
- 13A current rating
- Body made up of copper alloy with nickel plating
- Suitable for wire gauge range from 16 to 20AWG
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Body Orientation | Straight |
|
|
Gender | Receptacle |
|
|
Shielded | No |
|
|
Termination Method | Crimp |
|
|
Maximum Current Rating | 13 A |
|
|
Contact Size | 16 |
|
|
Operating Temperature | -55 to 125 °C |
|
|
Contact Plating | Nickel |
|
|
Mounting | Cable Mount |
|
|
Product Length | 19.27 mm |
|
|
Wire Size | 18 to 16, 18 AWG |
|
|
Contact Material | Copper Alloy |
|
|
Lead Finish | Nickel |
|
|
Series Name | AT62 |
|
|
Product Dimensions | 19.27 mm mm |
|
|
For Use With | DuraMate AT/AHD-9 Series Circular Connectors |
|
|
Contact Type | Signal |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8538907040 |
| HTSN: | 8538908140 |
Documents
Please log in to view more information.
Documents
| Title | Download | Type | Date Published |
|---|---|---|---|
| AT62-201-16141 3D Model | Symbols and Footprints | 20230202 | |
| AT-Series | Flyers | 20230202 |
