Manufacturer:
Amphenol

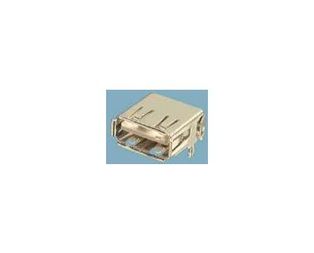

87520-0012BLF
USB Connector, USB Type A, USB 2.0, Receptacle, 4 Ways, Through Hole Mount, Right Angle
Avnet Manufacturer Part #:
87520-0012BLF
RoHS 6 Compliant
USB Connector, USB Type A, USB 2.0, Receptacle, 4 Ways, Through Hole Mount, Right Angle
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Gender | Receptacle |
|
|
Lead Finish | Tin |
|
|
Contact Material | Copper Alloy |
|
|
Product Length | 14.5 mm |
|
|
Max Processing Temp | 260 |
|
|
Termination Method | Solder |
|
|
Body Orientation | Right Angle |
|
|
Contact Plating | Gold |
|
|
Product Dimensions | 14.5 x 14 x 7.7 mm |
|
|
Mounting | Through Hole |
|
|
Base/Housing Material | Thermoplastic |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
Documents
Please log in to view more information.
Documents
| Title | Download | Type | Date Published |
|---|---|---|---|
| 87520-0012BLF STEP File | Mechanical-and-3D-Drawings | 20180427 | |
| FCI-PCN16012 PCN | EOL-Documentation | 20160109 | |
| FCI-PCN16012 PCN | Other-Documents | 20160109 | |
| FCI-PCN16063 PCN | EOL-Documentation | 20160109 |
