Manufacturer:
Amphenol
10104111-0001LF

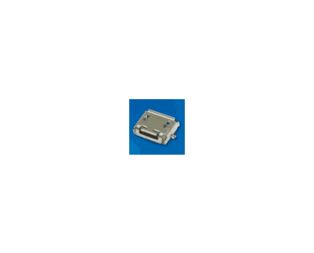

Conn USB Micro USB Type AB Receptacle 5 POS 0.65mm RA SMD Single Port T/R
Avnet Manufacturer Part #:
10104111-0001LF
RoHS 6 Compliant
Conn USB Micro USB Type AB Receptacle 5 POS 0.65mm RA SMD Single Port T/R
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Type | Micro USB Type AB |
|
|
Mounting | Surface Mount |
|
|
Contact Material | Copper Alloy |
|
|
Product Length | 8.8 mm |
|
|
Pitch | 0.65 mm |
|
|
Lead Finish | Gold Flash Over Nickel |
|
|
Number of Ports | 1 |
|
|
Base/Housing Material | Glass Filled Thermoplastic|Stainless Steel |
|
|
Body Orientation | Right Angle |
|
|
Product Dimensions | 8.8 x 5.6 x 3.07 mm |
|
|
Number of Contacts | 5 POS |
|
|
Operating Temperature | -30 to 80 to 85 °C |
|
|
Series Name | 10104111 |
|
|
Termination Method | Solder |
|
|
Number of Terminals | 5 |
|
|
Max Processing Temp | 260 °C |
|
|
Contact Plating | Gold Over Nickel |
|
|
Gender | Receptacle |
|
|
USB | USB2.0 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
Documents
Please log in to view more information.
Documents
| Title | Download | Type | Date Published |
|---|---|---|---|
| 10104111-0001LF STEP File | Mechanical-and-3D-Drawings | 20180427 |
