Manufacturer:
Amphenol
10039651-001LF

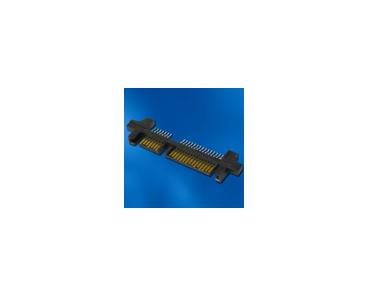

I/O Connector, 22 Contacts, Plug, SATA, Solder, 10039651 Series, Surface Mount Right Angle
Avnet Manufacturer Part #:
10039651-001LF
RoHS 6 Compliant
I/O Connector, 22 Contacts, Plug, SATA, Solder, 10039651 Series, Surface Mount Right Angle
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Gender | Plug |
|
|
Lead Finish | Matte Tin |
|
|
Number of Terminals | 22 |
|
|
Body Orientation | Right Angle |
|
|
Product Dimensions | 52 x 4.4 x 12.85 mm |
|
|
Number of Contacts | 15Power/7Signal POS |
|
|
Operating Temperature | -55 to 85 °C |
|
|
Contact Plating | Gold |
|
|
Termination Method | Solder |
|
|
Type | SATA |
|
|
Base/Housing Material | Thermoplastic |
|
|
Number of Ports | 1 |
|
|
Product Length | 52 mm |
|
|
Mounting | Surface Mount |
|
|
Max Processing Temp | 260 |
|
|
Contact Material | Copper Alloy |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
Documents
Please log in to view more information.
Documents
| Title | Download | Type | Date Published |
|---|---|---|---|
| 10039651-001LF STEP File | Mechanical-and-3D-Drawings | 20180427 |
