headline - 202312S1

Avnet’s 600W / 2000W off-Board EV charger

Description - 202312S1

A game changing Isolated Power convertor and charger

Following the switch towards hybrid and electric vehicles, vehicle manufacturers remain divided when it comes to on board and off board chargers; looking for the middle ground between faster charging, battery health and space.

Avnet offers the best of both worlds with the new 600W / 2000W Off-Board Electric Vehicle Charger with constant output voltage and current control feedback, this charger relies on a front end PFC (power factor correction) and isolated LLC (inductor-inductor-capacitor) topology to optimize efficiency and offer greater regulation for 72V and 48V batteries.

Person controlling home thermostat with an iPad

Static - 202312S1

The 600W / 2000W charger and converter also features analog components such as, a precision operation amplifier to control the output constant voltage and constant current for the charger application, an adjustable shunt voltage reference in the output side of the charger in the event of over voltage and an operation amplifier to protect the PFC MOSFET from over current. In addition, the charger also contains a dimming interface IC used to input under and over voltage protection.


Features:

  • Input AC Line frequency: 47Hz to 63Hz
  • Input A.THD : <3.5% @ Full Load
  • Power factor : >0.97 @ Full Load
  • Efficiency : 92% @ Full Load
  • Communication : Iso / Non-Iso CAN, RS485


Applications

  • Electric Two-wheeler & Three-wheeler
  • Electric E-Carts.

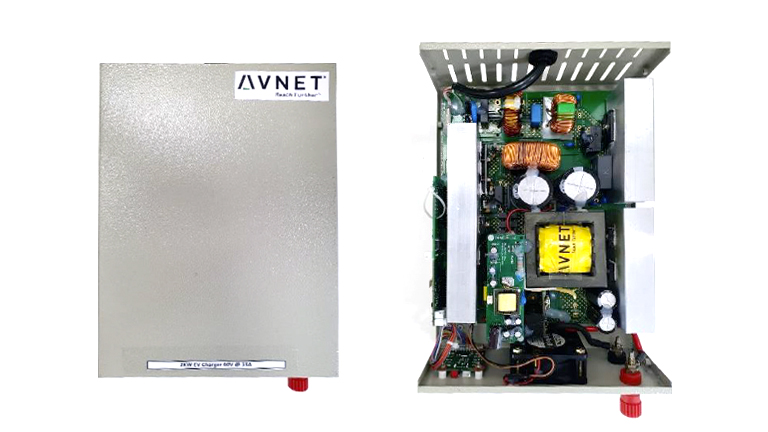

Avnet’s 600W / 2000W Off-Board EV Charger

Avnet’s 600W / 2000W Off-Board EV Charger


Block diagram

Avnet’s 600W / 2000W Off-Board EV Charger
