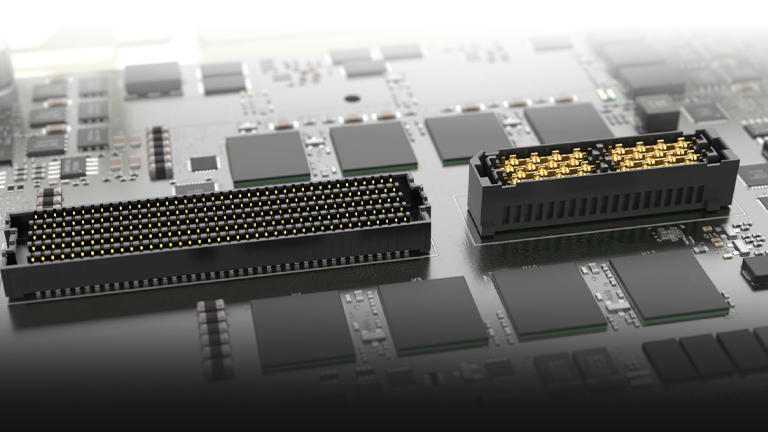

NovaRay® 112Gbps PAM4 extreme density arrays

Mixed Media

High-performance computing and artificial intelligence applications are driving the demand for increased data speeds, higher frequencies and greater signal integrity. To meet these challenges, Samtec offers a range of connector and cable solutions that support next-generation AI/ML and HPC applications.

The innovative design of NovaRay® combines extreme density and extreme performance, which is critical as system sizes decrease and speeds increase. With extremely low crosstalk, tight impedance control and stub-free mating, NovaRay® is designed to deliver 112Gbps PAM4 performance per channel and offer a path to 224Gbps. The fully shielded differential pair design and multiple points of contact contribute to industry leading 4.0 Tbps aggregate data rate.



3M has presented New 3M™ 100G QSFP28 Direct Attach Copper Cable Assemblies, 9Q Series are passive copper cable assemblies which utilize 3M Twin Axial Cable technology to create a highly-flexible, foldable, high-performance solution.

Features-Apps title

Features/Applications

NovaRay 112 Gbps PAM4 Extreme Density Arrays - Table

Features Applications
  • 4.0 Tbps aggregate data rate - 9 IEEE 400G channels
  • PCIe® 6.0/CXL® 3.1 capable

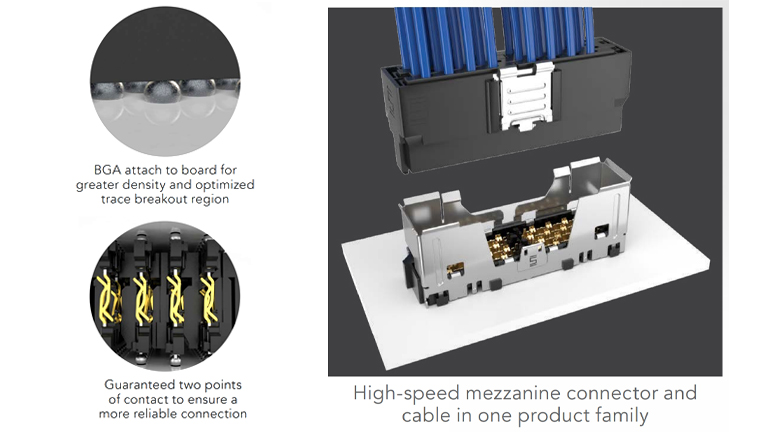

  • Two points of contact ensure a more reliable connection
  • Fully shielded differential pairs
  • Extremely low crosstalk (beyond 40GHz) and incredibly tight impedance control
  • Minimal variance in data rate as stack height increases
  • Utilizes 40% less space with the same data throughput as compared to traditional arrays
  • Latching terminal mates with NovaRay® cable (NVAC/NVAM-CT)
  • Analog Over Array™ capable
  • AI/ML
  • High Performance Computing
  • Medical
  • Energy
  • Automotive & Transportation
  • Industrial/IIoT
