Experience Superior Timing Stability

Abracon Automotive ClearClock® Oscillators AK2AAIG / AK3AAIG Series

Introducing Abracon's automotive-grade ClearClock® AK2AAIG & AK3AAIG oscillators. With increasing demand for wide operating temperature electronics, precise timing solutions are critical to ensuring safety, optimizing performance, and enhancing overall efficiency.

Abracon's latest ClearClock® products are AEC-Q200 compliant, making them the perfect precision timing solution for designs used in extreme environments such as automotive networking and industrial test equipment.

Our AK2AAIG/AK3AAIG-series are quartz crystal oscillators that utilize third overtone technology to lower RMS jitter, as low as 83fs typical, ensuring exceptional timing accuracy and stability.

With the increasing demand for wide operating temperature electronics, precise timing solutions are critical to ensuring safety, optimizing performance, and enhancing overall efficiency. Abracon's ClearClock® technology is now AEC-Q200 compliant, making it the perfect solution for designs used in extraneous environments. Offering superior timing accuracy to support applications like automotive networking and industrial test equipment.

Abracon’s ClearClock® technology is manufactured to maintain its excellent performance while boasting essential certifications such as AEC-Q200 qualification and Automotive Grade 1 certification. These credentials underscore ClearClock®s' reliability and suitability for the demanding automotive environment. AK2AAIG/AK3AAIG is a quartz crystal oscillator that uses third overtone technology to lower RMS jitter, as low as 83fs typical, ensuring exceptional timing accuracy and stability. This robust combination allows automotive systems to operate with precision and consistency, even in the most challenging conditions. ClearClock®'s versatility outperforms through its compatibility with industry-standard frequencies, voltage options, and differential output logic. Whether it is engine timing, infotainment systems, or optical module, ClearClocks® seamlessly integrate into diverse automotive applications, delivering outstanding performance every time.

Features

• Exceptionally Low RMS Jitter: 83fs Typ
• Available in industry standard frequencies between 100MHz & 200MHz
• Industry Standard Package Sizes
• Based on 3rd Overtone, Quartz Crystal Technology
• Output Enable (Pad 1 or Pad 2 Active High) options available

Applications

• Optical Transceivers and Modules
• Data Centers, Storage, and Servers
• Automotive Networking, Networking Switches and Gateways
• 100G/200G/400G/800G Ethernet
• Fiber Channel/SONET/SDH/PCIe
• Industrial and FPGA Applications
• Test & Measurement including Industrial Test Equipment

Benefits

• Widest Temp Range: -40ºC to +125ºC
• Tightest Tolerance: ±15ppm
• 2.5V, 3.3V, 2.25V to 3.63V Continuous Supply Voltage Options

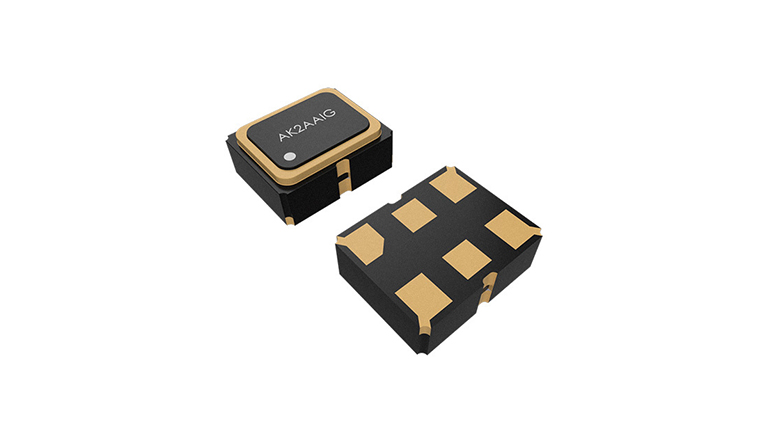

Description of Above Graphic

Abracon AK2AAIG / AK3AAIG Series
