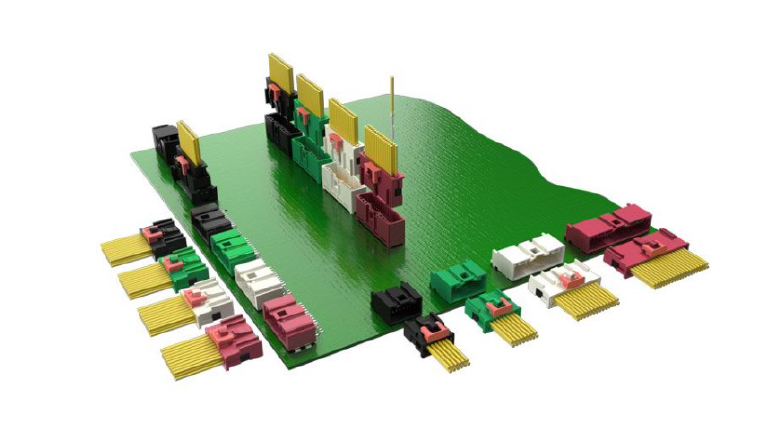

WireLock® 1.80mm pitch wire-to-board and flex-to-wire connector system

WireLock® is a 1.80mm pitch  is a double-row connector system offering four coding types with different colors. The connector has a nominal current carrying capacity of 2A and supports cable wire gauges from 22AWG to 26AWG. WireLock® is available in 10 up to 40 positions in a double row with vertical and horizontal TH and SMT configurations.


Features

• USCAR-T2V2, LV 214 S2 compliant
• Four different codings with different colors
• Positions from 10 to 40
• Terminal Position Assurance (TPA)
• Connector Position Assurance (CPA)

Applications

BMS in Automotive markets

Key Components

• compact design
• space-saving
• automotive-grade connectors.

Benefits

• Suitable on Industrial and Automotive
• Visual and mechanical mismatching prevention system
• wide range
• Ensures proper terminal insertion position and retention
• Ensures proper connector mating and locking
