Micro Mate™ 1.00 mm Pitch Discrete Wire Cables & Connectors
Manufacturing efficiencies are growing exponentially due to network infrastructures built to integrate all systems of the business. This combination of real-time data from the factory floor with a secure network of systems translates data into action points that can help reduce waste and improve flexibility, productivity, and quality. Systems designed for industrial automation include programmable logic controllers (PLCs), human-machine interfaces (HMIs), sensors, actuators, and industrial communication networks. Samtec high-performance interconnects are designed and tested to provide reliable and secure connections in these industrial systems.

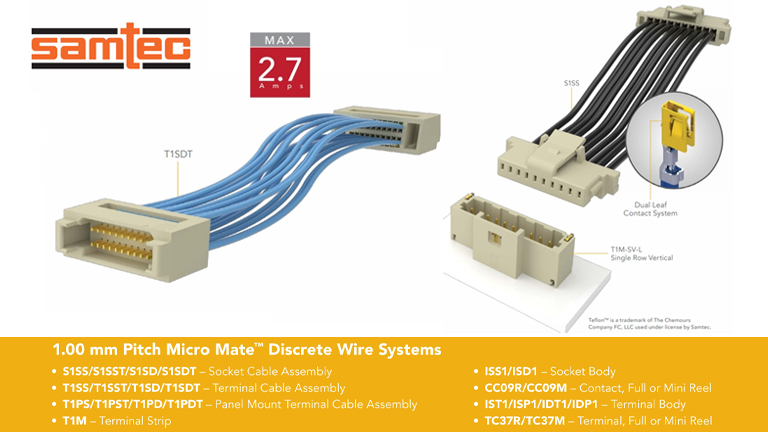

Samtec’s Micro Mate™ discrete wire systems offer incredible space savings and design flexibility. Crimp-style dual leaf contacts provide a reliable connection in a slim, low profile design for cable-to-board, cable-to-cable and cable-to-panel applications.
Features
- One product family that supports cable-to-board, cable-to-cable and cable-to-panel applications
- Extremely small form factor compared to other 28 AWG assemblies
- Current rating: 2.7 A max
- Voltage rating: 250 VAC / 353 VDC max
- Rugged single or double latching for a solid connection
- Panel mount version fits .033"–.090" panel thickness
- Crimp-style dual leaf contact system
- 2 through 20 total contacts (single row)
- 4 through 40 total contacts (double row)
- Teflon™ fluoropolymer wire available for high temp or halogen free applications
- Extremely low profile, right-angle board mount connector/cable mate
- Available as components or complete assemblies
- Assembly tooling available
Applications
- Automotive & Transportation
- COMPUTER
- Mecical
- Energy
- Industrial/IIoT
- Datacom
