NanoT series
Nano size tact switch for SMT

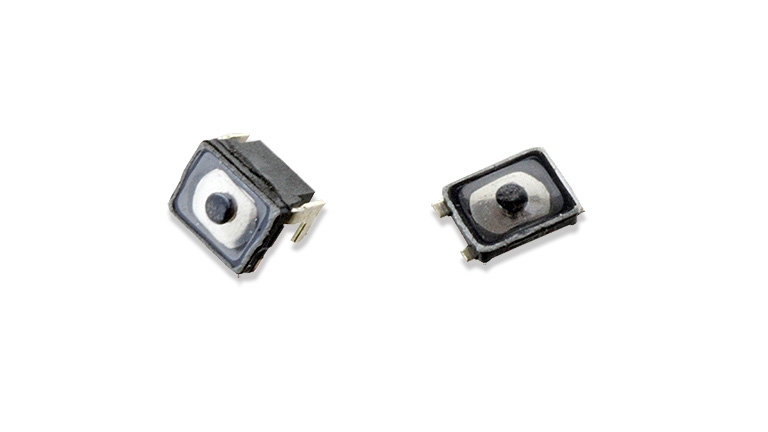

NanoT series nano size tactile switch is the smallest ever in top actuated and side actuated version. The latest being available in full SMT or PIP for a stronger shock resistance.
NanoT tactile switch series is the smallest solution on the market for sophisticated applications powered by Internet of Things (IoT) devices. The miniature package gives product designers the room to add additional functionality to their units or to reduce their PCB size.
Other features include:
1) A PIP or SMT on edge mount configuration to protect wearable and medical products from tough conditions they are constantly exposed to – such as vibrations, accidental drops or exposure to liquid – while also improving the devices’ lifecycle since they are used repeatedly, which causes natural wear and tear.
2) An integrated actuator that lowers cost and integration challenges with full interface buttons.
3) 100, 160 & 240 gf – the most common versions used in the market
4) A lifecycle up to 300K that lowers costly repairs.
5) IP67 for sealed switch compatibility with PCB coatings.
Features
- Top and side versions
- 2.1 x 1.65 x 0.55 mm and 2.2 x 1.7 x 1.65 mm form factor
- IP67
Applications
- Hearing aids
- Sport and health monitoring watches
- IoT
- Headsets
