VOL617A-3X001T
LSOP-4 CPLR 100-200% CTR IF=5mA VDE-e3

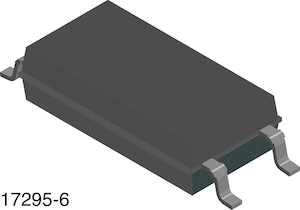

Click image to enlarge
Manufacturer:Vishay
Product Category:
Optoelectronics, OptoCouplers, Transistor & Photovoltaic Output PhotoCouplers
Avnet Manufacturer Part #: VOL617A-3X001T
Secondary Manufacturer Part#: VOL617A-3X001T
-
RoHS 10 Compliant -
Tariff Charges
The VOL617A-3X001T is a 4-pin Phototransistor Output Optocoupler has a GaAs infrared emitting diode emitter, which is optically coupled to a silicon planar phototransistor detector. It features a high current transfer ratio, low coupling capacitance and high isolation voltage. The coupling device is designed for signal transmission between two electrically separated circuits. It is suitable for battery-powered equipment, office machines and programmable controllers.
- Low coupling capacitance
- High common-mode transient immunity
- 80V High collector emitter voltage
- 6V Reverse voltage
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 5 us | ||
| 1.16 V | ||
| 60 mA | ||
| Tin | ||
| 260 °C | ||
| 50 mA | ||
| 80 V | ||
| 200@5mA % | ||
| 5000 Vrms | ||
| Surface Mount | ||
| MSL 1 - Unlimited | ||
| 1 | ||
| -55 to 110 °C | ||
| Transistor | ||
| 4SOP | ||
| 4 | ||
| 4.1 x 7.5 x 2 mm mm | ||
| 6 V | ||
| SOP | ||
| 3.5 us |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8541409500 |
| Schedule B: | 8541409500 |
Factory Lead Time:
