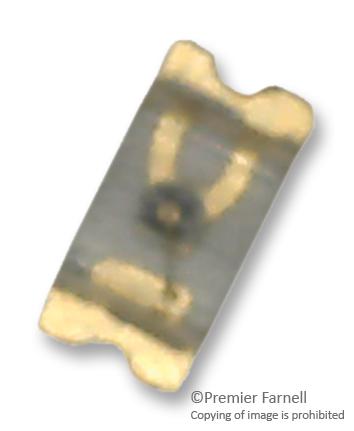

VLMS1300-GS08
Click image to enlarge
Manufacturer:Vishay
Product Category:
Opto-electronics, LED, High Brightness LEDs
Avnet Manufacturer Part #: VLMS1300-GS08
-
RoHS 10 Compliant -
Tariff Charges
- Super red color, 54mcd typ luminous intensity at (Tamb = 25°C)
- 631nm typical wavelength at (Tamb = 25°C), 2V typical forward voltage at (Tamb = 25°C)
- AlInGaP technology, high reliability PCB based
- 130° extremely wide viewing angle, compatible to IR reflow soldering
- Preconditioning according to JEDEC® level 3
- Reverse current is 10µA maximum at (VR = 5V, Tamb = 25°C)
- Junction capacitance is 40pF typical at (VR = 0V, f = 1MHz, Tamb = 25°C)
- Operating temperature range from -35°C to +85°C
- SMD package
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 20 MA | ||
| 1 LEDs | ||
| 2 Pins | ||
| 639 nm | ||
| 75 mW | ||
| null | ||
| 5 V | ||
| 130 ° |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | null |
| Schedule B: | null |
Factory Lead Time:
