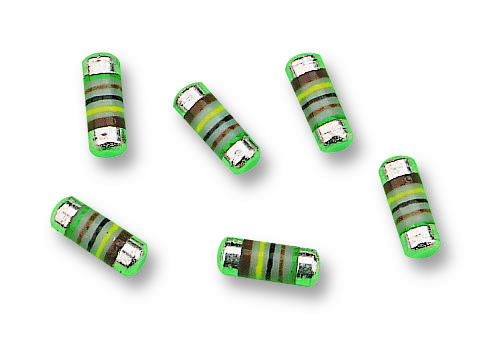

MMA02040Z0000ZB300
Zero Ohm Resistor, Jumper, MiniMELF 0204, Thin Film, 400 mW, 3 A, Surface Mount
Click image to enlarge
Manufacturer:Vishay
Product Category:
电阻器, 零欧姆电阻器（跳线）, 零欧姆电阻器
Avnet Manufacturer Part #: MMA02040Z0000ZB300
Secondary Manufacturer Part#: MMA02040Z0000ZB300
-
RoHS 10 Compliant -
Tariff Charges
The Vishay MMA 0204 series is automotive grade thin film MELF surface mount resistors. These resistors are a perfect choice where reliability and stability is of concern. MELF resistors are available in resistance value ranging from 0.22ohm to 10Mohm.
- Available in DIN0204 size
- Available in ±5%, ±1%, ±0.5% tolerance
- Temperature coefficient (TCR) of ±50ppm/K, ±25ppm/K
- Power rating of 0.4W and rated voltage of 200V
- Operating temperature range -55°C to +155°C
- Automotive grade AEC-Q200 qualified
- Approved according to EN 140401-803
- Advanced metal film technology
- Excellent overall stability that exceeds class 0.25
- Jumpers are also available
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 125 °C | ||
| -55 °C | ||
| 400 mW | ||
| 3.6 mm | ||
| MMA Series | ||
| 204 | ||
| Surface Mount | ||
| Metal Film |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Ships
in 1 bus. day
