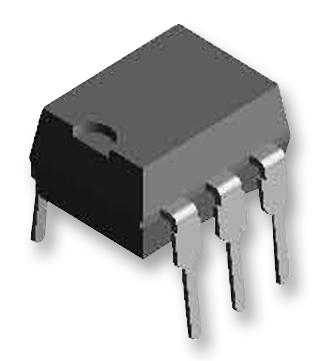

LH1501BABTR
SMD-6 SSR 1 FORM B 3750 VRMS -e3
The LH1501 relays are SPST normally closed switches (1 form B) that can replace electromechanical relays in many applications. The relays are constructed as a multi-chip hybrid device. Actuation control is via an infrared LED. The output switch is a combination of a photodiode array with MOSFET switches and control circuity. The relays can be configured for AC/DC or DC only operation
- 1 form B solid state relay
- Isolation test voltage 3750VRMS
- Clean bounce free switching
- Low power consumption
- Suitable for general telecom switching, security equipment, instrumentation and industrial controls
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 1 Form B | ||
| DC | ||
| Tin | ||
| 260 | ||
| 1.45 V | ||
| Surface Mount | ||
| 0.2 A | ||
| MOSFET | ||
| AC|DC | ||

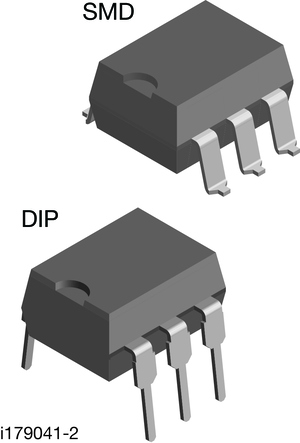

| 6PDIP SMD | ||
| 6 | ||
| 8.71 x 6.5 x 3.81 mm | ||
| No | ||
| PDIP SMD |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
