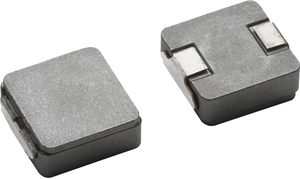

IHLP4040DZERR56M01

Name: IHLP4040DZERR56M01
Brand: Vishay
SKU: IHLP4040DZERR56M01
Availability: InStock

Click image to enlarge

Manufacturer:Vishay

Product Category: Inductors, Power Inductors, SMD Power Inductors

Avnet Manufacturer Part #: IHLP4040DZERR56M01

Secondary Manufacturer Part#: IHLP4040DZERR56M01

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	DC Resistance Max	1.8 mOhm
	Inductance	560 nH
	Inductance Tolerance	20
	Inductor Case / Package	4040
	Inductor Construction	Shielded
	Product Height	4 mm
	Product Length	10.16 mm
	Product Range	IHLP-4040DZ-01 Series
	Product Width	10.16 mm
	RMS Current (Irms)	27.5 A
	Saturation Current (Isat)	49 A

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	null
ECCN:	EAR99
HTSN:	PARTS...
Schedule B:	PARTS...

In Stock : 0

Additional inventory

Factory Lead Time: 84 Weeks

Price for: Each

Quantity:

Min:500 Mult:500

USD $:

$0.00000
