IHLD4032KBER330M5A
IHLD-4032KB-5A 33 20% ER E3

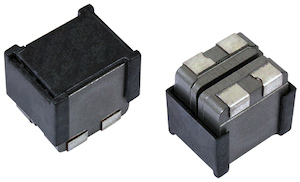

The IHLD4032KB series from Vishay are automotive grade, surface mount low profile high current dual inductors. Optimal design of these shielded inductors provides high quality sound with low distortion and ultra low buzz noise due to composite construction.
- EIA 4032 chip size
- Automotive grade AEC-Q200 qualified
- Inductance value range from 10µH to 33µH
- Saturation current range from 3.7A to 7.4A
- DCR value range from 30.5mohm to 107mohm
- Frequency range up to 1MHz
- Low coupling for minimal cross talk between inductors & lowest DCR/µH in this package
- Handles high transient current without saturation
- Operating temperature range from -55°C to 155°C
- Minimizes board space requirements
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 0.107 Ohm | ||
| 33 uH | ||
| ±20% | ||
| 4032 | ||
| Shielded | ||
| 11.2 mm | ||
| 11.89 mm | ||
| IHLD-4032KB-5A Series | ||
| 9.62 mm | ||
| 3.8 A | ||
| 3.7 A |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8504508000 |
| Schedule B: | 8504500000 |
