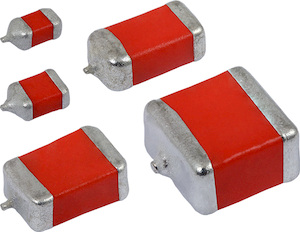

594D187X0016R2T
表面贴装钽电容, 180 µF, 16 V, ± 20%, 2824 [7260 公制]
The 594D187X0016R2T is a TANTAMOUNT® SMD solid tantalum Chip Capacitor with 100% tin termination. The 594D series conformal-coated tantalum electrolytic capacitor is the preferred choice in applications where volumetric efficiency, stable electrical parameters, high reliability and long service life are primary considerations. Solid electrolyte capacitor contains manganese dioxide, which is formed on the tantalum pentoxide dielectric layer by impregnating the pellet with a solution of manganous nitrate. The pellet is then heated in an oven and the manganous nitrate is converted to manganese dioxide.
- Maximum CV
- Low ESR
- Large capacitance rating range
- 2.13A RMS at 100kHz Maximum ripple current
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 180 uF | ||
| ± 20% | ||
| 2824 [7260 Metric] | ||
| 0.055 Ohm | ||
| -888 | ||
| R | ||
| MSL 2A - 4 weeks | ||
| 85 °C | ||
| -55 °C | ||
| 3.5 mm | ||
| 6.2 mm | ||
| 6 mm | ||
| -888 | ||
| 2.13 A | ||
| 16 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8532210050 |
| Schedule B: | 8532210050 |
Factory Lead Time:
