5-1393788-8
Signal Relay, 24 VDC, DPDT, 2 A, P2/V23079, Surface Mount, Non Latching
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Electromechanical, Relays, Signal Relays
Avnet Manufacturer Part #: 5-1393788-8
Secondary Manufacturer Part#: 5-1393788-8
-
RoHS 10 Compliant -
Tariff Charges

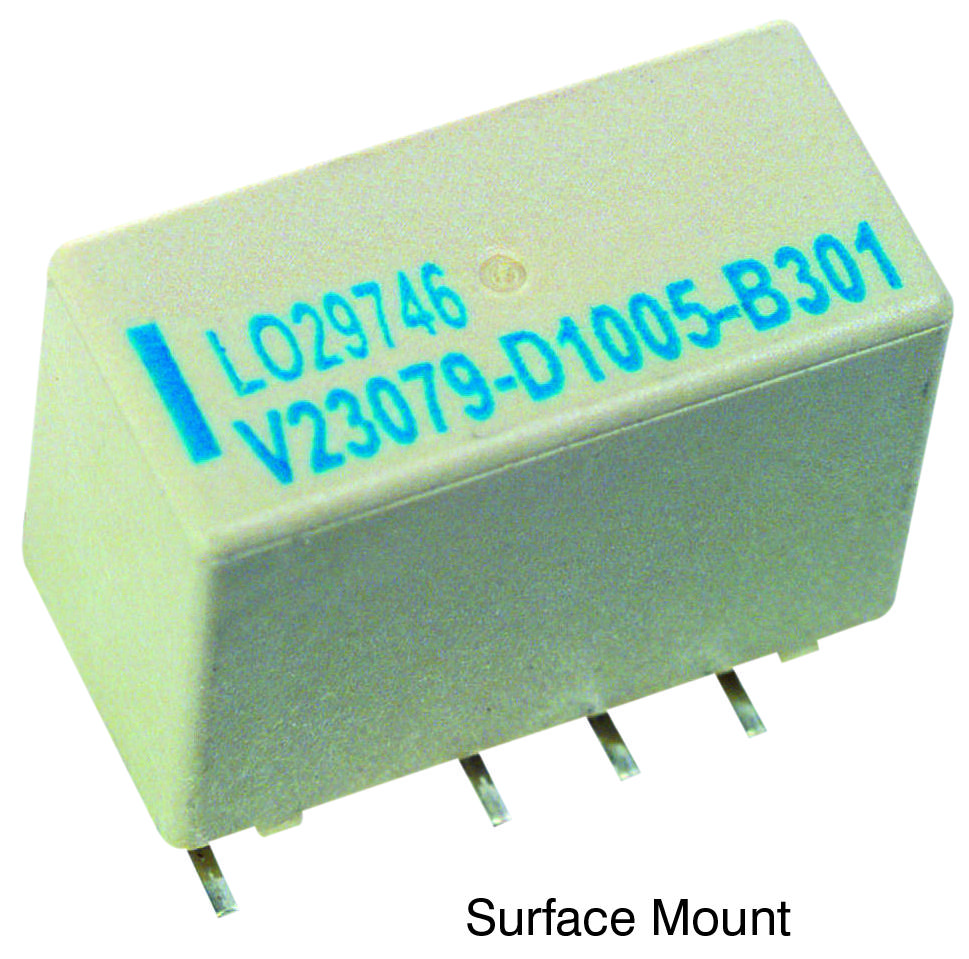

The V23079D1005B301 is a Signal Relay with DC coil. This V23079-series signal relay 2-form-C (DPDT) Au-plated AgNi bifurcated contact. SMT long terminals, high sensitivity for low power consumption 140mW/70mW. Single coil version with surge voltage resistance between contact and coil 2.5kV (2/10µs) meets the Telcordia Requirement GR-1089, 1.5kV (10/160µs) meets FCC Part 68.
- Standard telecom relay
- SMT version, monostable DC coil
- Slim line relay
- Immersion cleanable
- -40 to 85°C Operating temperature range
- Wash tight RT III environmental protection rating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 5.83 mA | ||
| DPDT-2CO | ||
| Silver Nickel Gold | ||
| 24 V | ||
| 245 | ||
| 250 V | ||
| 2 A | ||
| 2 A | ||
| 220 V | ||
| 18 V | ||
| 60 W | ||
| Surface Mount | ||
| -40 to 85 to 85 °C | ||
| 10 | ||
| 14.5 x 7.2 x 10.4 mm | ||
| P2 V23079 | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
