207485-1
Circular Connector, Circular Industrial, CPC Series 4, Cable Mount Plug, 16 Contacts

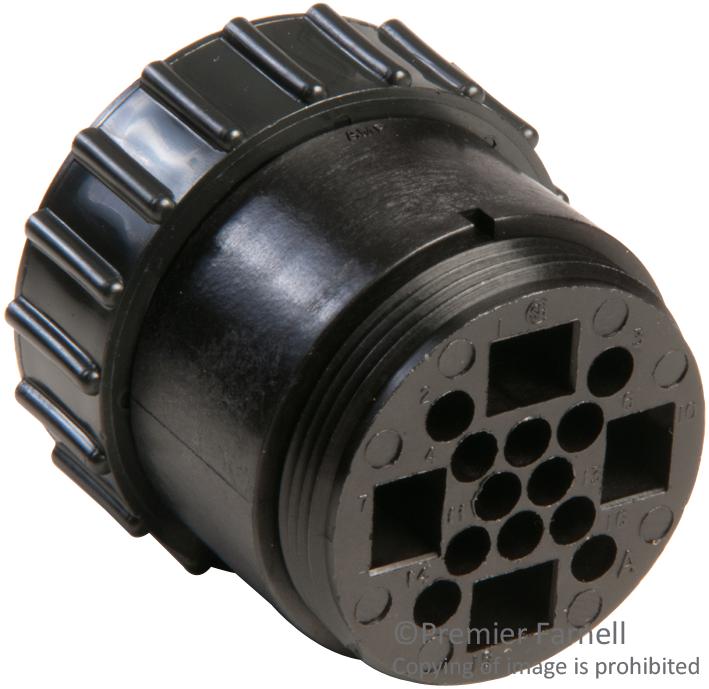

Click image to enlarge
Manufacturer:TE Connectivity
Avnet Manufacturer Part #: 207485-1
Secondary Manufacturer Part#: 207485-1
-
RoHS 10 Compliant -
Tariff Charges
The 207485-1 is a 16-position I/O Circular Connector with black GF nylon 6/6 housing. The plug has a keyed mating alignment and threaded coupling mating retention. The CPC connector is UL94V-0 rated and made of stabilized, heat resistant, self-extinguishing thermoplastic material. It has quick connect/disconnect capability with thread assist, positive detent coupling. It has built-in pin and socket protection. Polarized for proper mating of connector halves.
- Without flange?
- Straight mounting angle
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Plug | ||
| Cable Mount |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
