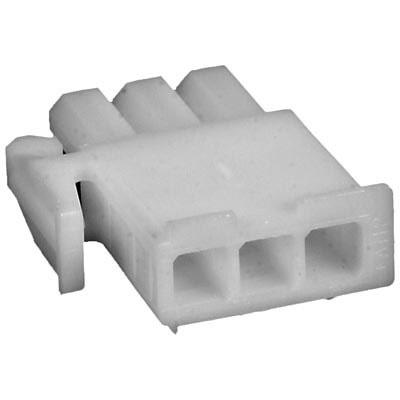

172166-1
Connector Housing, Mini-Universal MATE-N-LOK Series, Plug, 3 Ways, 4.14 mm
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 172166-1
Secondary Manufacturer Part#: 172166-1
-
RoHS 10 Compliant -
Tariff Charges
The 172166-1 is a 3-way 1-row natural color free-hanging Plug Housing made of nylon 66/6. It is ideal for use with mini-universal MATE-N-LOK cap housing/PC board pin headers. The contacts are fully protected in the housings. The pins and sockets can be accommodated in the same housing.
- UL94V-0 Flammability rating
- In-line contact layout
- 600VAC (600VDC) Operating voltage
- -20 to 105°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon | ||
| Straight | ||
| Plug | ||
| Natural | ||
| 7 A | ||
| Cable Mount | ||
| 3 | ||
| 1 | ||
| -20 to 105 °C | ||
| 4.2000 mm | ||
| 23.7 mm | ||
| 23.7 mm | ||
| 172166 | ||
| Power Housing | ||
| 600 Vdc|Vac | ||
| 30 to 16 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
