167301-4

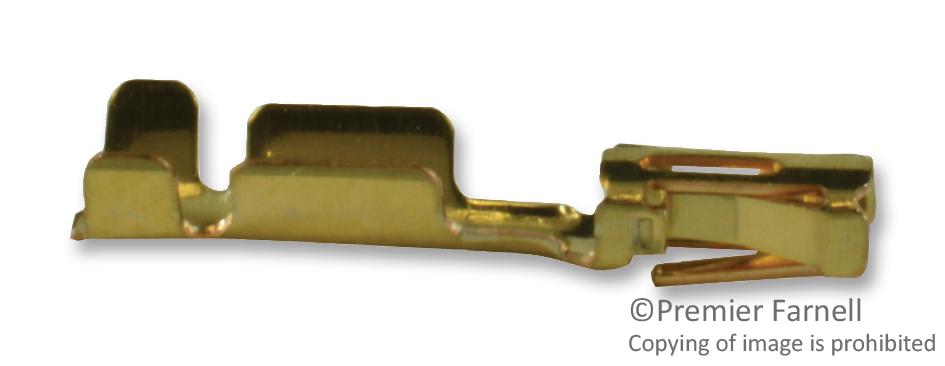

Contact, AMPMODU IV/V Series, Socket, Crimp, 20 AWG, Gold Plated Contacts
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 167301-4
Secondary Manufacturer Part#: 167301-4
-
RoHS 10 Compliant -
Tariff Charges
The 167301-4 is a 24 to 20AWG Socket Crimp Contact made of phosphor bronze base material with gold-plating on contact mating area and gold-flash-plating on crimp area.
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| Phosphor Bronze | ||
| Gold | ||
| Receptacle | ||
| Cable Mount | ||
| -65 to 105 °C | ||
| 11.9 x 2.4 x 2.5 mm | ||
| No | ||
| Crimp | ||
| 24 to 20, 24 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8544.42.10.00.5 |
| Schedule B: | 8544.42.10.00.5 |
