1658670-1
D Sub Contact, HDP-22, Pin, Brass, Gold Plated Contacts, 22 AWG, 28 AWG
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 1658670-1
Secondary Manufacturer Part#: 1658670-1
-
RoHS 10 Compliant -
Tariff Charges

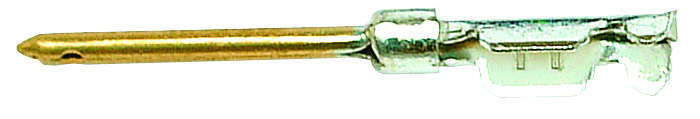

The 1658670-1 is a strip form Pin Contact for use with HDP-22 crimp series connectors, 28 to 22AWG wire range. Gold-plated brass base and tin-plated over nickel solder tail contact.
- Crimp snap-in contact style
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| 0.08 to 0.4 mm² | ||
| D-Subminiature Connector | ||
| Brass | ||
| Gold | ||
| 22 | ||
| Signal | ||
| Pin | ||
| Tin | ||
| 15 mOhm | ||
| 1.9 A | ||
| Cable Mount | ||
| -55 to 105 °C | ||
| 1.9 mm | ||
| HDP-22 | ||
| No | ||
| Crimp | ||
| 28 to 22, 28 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
