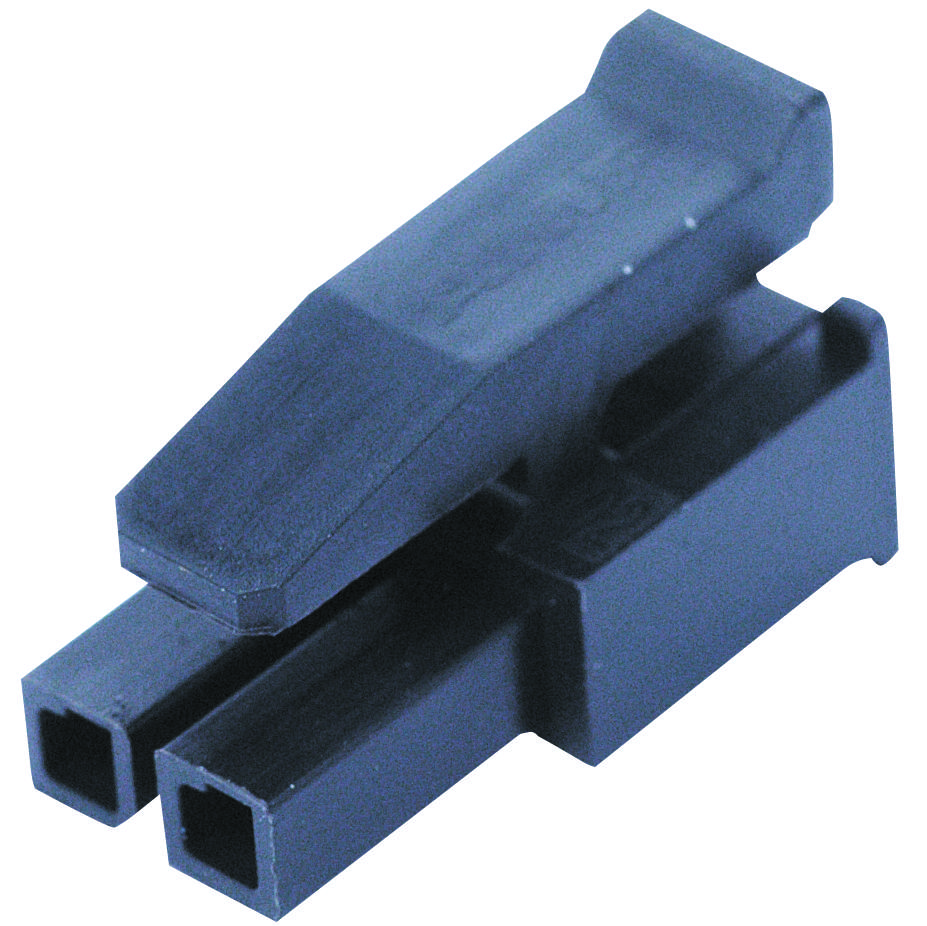

1445022-2
Connector Housing, Micro MATE-N-LOK, Receptacle, 2 Ways, 3 mm
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 1445022-2
Secondary Manufacturer Part#: 1445022-2
-
RoHS 10 Compliant -
Tariff Charges
The 1445022-2 from TE Connectivity is a Micro MATE-N-LOK series socket housing. It is 2 position housing with pitch spacing of 3mm.
- Housing material is nylon
- Integrated with locking feature
- Single row housing
- Suitable for wire to board and wire to wire connector system
- Maximum operating temperature of the housing is 105°C
- UL, CSA & VDE approved
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon | ||
| Straight | ||
| Receptacle | ||
| Black | ||
| -40 to 105 °C | ||
| 3.0000 mm | ||
| 7 x 8.7 mm | ||
| 8.7 mm | ||
| 7 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
