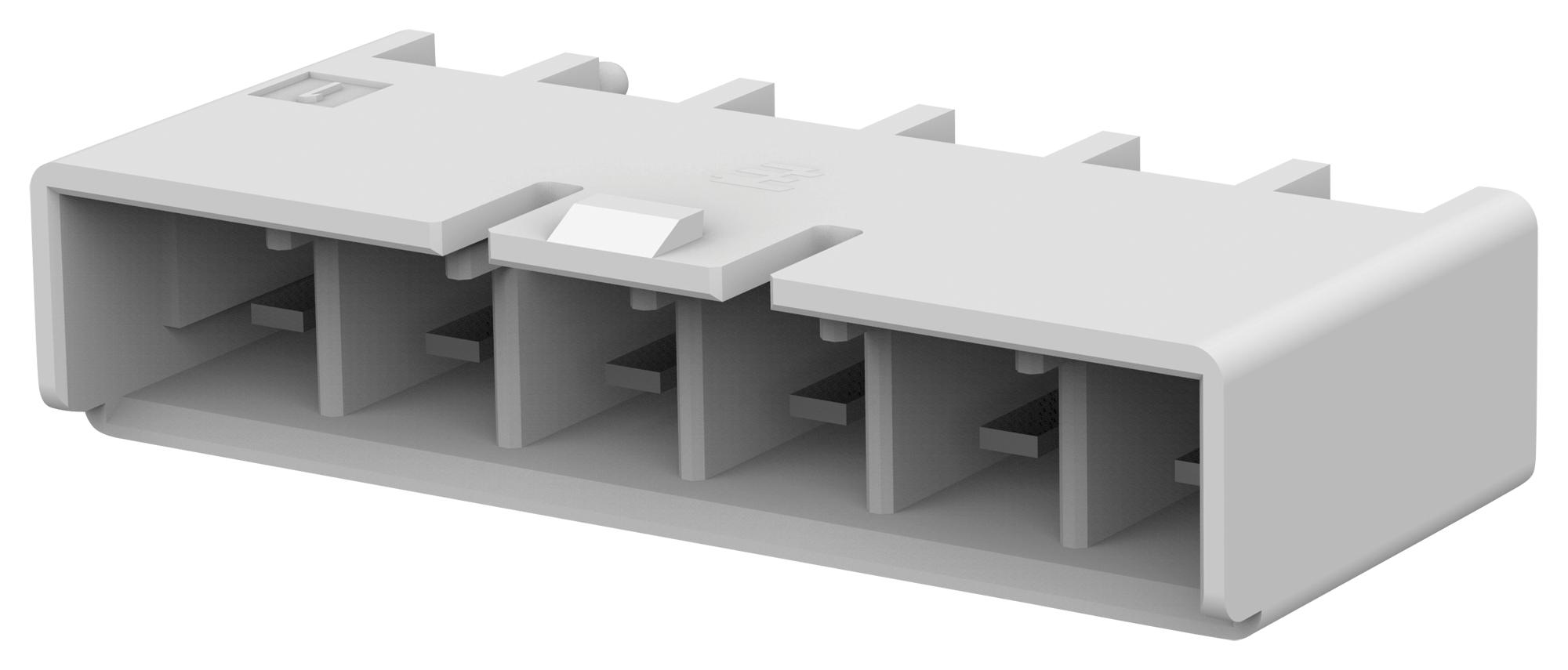

1376385-1
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
null
Avnet Manufacturer Part #: 1376385-1
Secondary Manufacturer Part#: 1376385-1
-
RoHS 10 Compliant -
Tariff Charges
- Compact design with 19.4 mm mated height
- Power circuit connector with 5.0 mm contact centerline
- Wire-to-board connectors consisting of plug housings for wires and PCB header assemblies
- With a clear clicking sound, contact insertions can be made easier. The double lock plate provides for complete loading of contacts
- Locking levers are surrounded by walls, which protect levers and prevent tangling with wires
- Connector is designed to release bubbles created by the process of potting (PC board coating)
- Housing lances also help prevent tangling of wired contacts
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon | ||
| Straight | ||
| Copper Alloy | ||
| Tin | ||
| Plug | ||
| Tin | ||
| 265 | ||
| Through Hole | ||
| -30 to 105 °C | ||
| 5.0000 mm | ||
| 7 mm | ||
| 31.6 x 7 x 14.1 mm | ||
| 14.1 mm | ||
| 31.6 mm | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
