1-281698-0
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Loose Piece

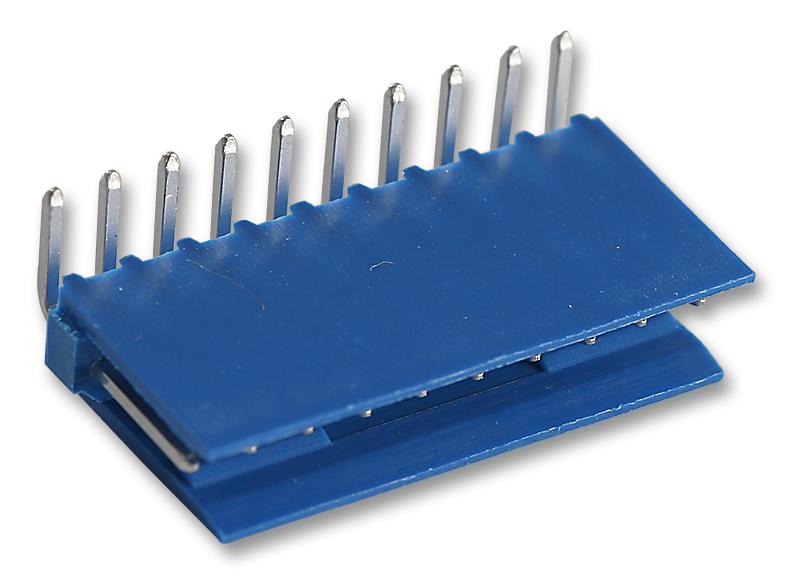

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, PC Board, Pin & PCB Headers
Avnet Manufacturer Part #: 1-281698-0
Secondary Manufacturer Part#: 1-281698-0
-
RoHS 10 Compliant -
Tariff Charges
The 1-281698-0 is a 10-position 1-row shrouded Wire-to-Board Header with tin over nickel-plated phosphor bronze contacts and blue high temperature thermoplastic 2-sided housing. It is a plug style connector with crimp, Insulation Displacement Crimp (IDC) termination method to wire/cable?and polarization mating alignment type. It is applicable to printed circuit board.
- With contact protection
- UL94V-0 Flammability rating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic | ||
| Right Angle | ||
| Phosphor Bronze | ||
| Tin | ||
| 2.54 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8536698000 |
| Schedule B: | 8536695050 |
Factory Lead Time:
