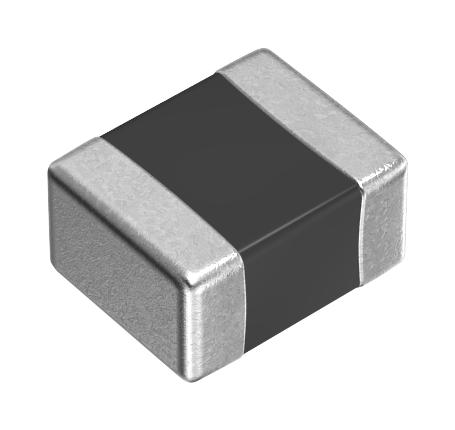

TFM201610ALMA1R0MTAA
Thin Film Inductor, 1 uH, 60 Milliohms, 3.4 A, 0806 [2016 Metric]
TFM201610ALMA1R0MTAA is a TFM-ALMA series (for automotive) inductor for power circuits. By using metal magnetic material with high Saturation magnetic flux density the excellent DC bias characteristics needed for inductors for power circuits can be achieved. It has excellent mounting stability characteristics and can also be mounted to general-purpose land patterns. Typical applications include ADAS ECU, in-vehicle camera (view camera, sensing camera), radar, meter cluster, automotive communication module and other power supply circuit uses.
- 1µH inductance, ±20% tolerance, 1MHz frequency
- 50mohm typical DC resistance
- 3.7A typical rated current
- 20V maximum rated voltage
- Operating temperature range from -55 to +150 °C
- By using a closed magnetic circuit structure leakage flux is minimized
- Compliant with AEC-Q200
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Metal | ||
| 3.4 A | ||
| 60 Ohm | ||
| 1 µH | ||
| ± 20% | ||
| 0806 [2016 Metric] | ||
| Shielded | ||
| 1 mm | ||
| 2 mm | ||
| TFM-ALMA Series | ||
| 1.6 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8504508000 |
| Schedule B: | 8504100000 |
Factory Lead Time:
