B57153S0330M000
Thermistor, ICL NTC, 33 ohm, -20% to +20%, Radial Leaded, B57153S0 Series

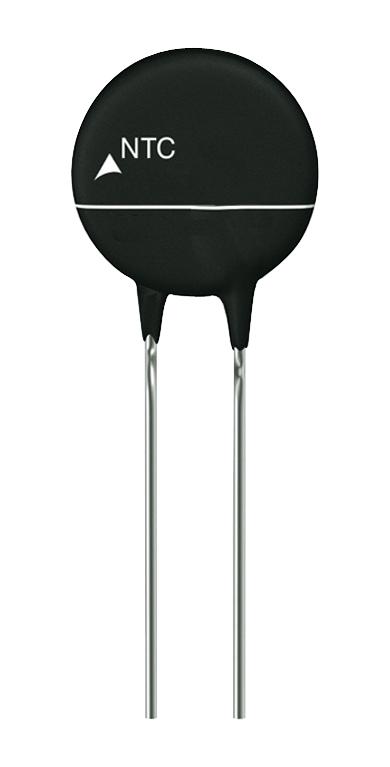

Click image to enlarge
Manufacturer:TDK
Product Category:
电路保护, 电路保护热敏电阻, 浪涌电流限制器 (ICL) NTC 热敏电阻
Avnet Manufacturer Part #: B57153S0330M000
Secondary Manufacturer Part#: B57153S0330M000
-
RoHS 10 Compliant -
Tariff Charges
The B57153S0xxxM0xx series from EPCOS are radial leaded NTC inrush current limiters (ICLs). These NTC thermistors can be used as inrush current limiters to suppress high inrush current. The high currents in the circuits are caused by low impedance of smoothing capacitors or coils which produce short circuits when the device is switched on. B57153S0xxxM0xx series ICLs are commonly used in switch mode power supplies.
- Useable in series connections up to 265Vrms
- Coated thermistor disk
- Cost effective NTC for low-power applications
- Kinked leads of tinned copper wire
- Small size
- UL (E69802) approved
- Resistance value at 25°C range from 4.7ohm to 33ohm
- Tolerance is ±20%
- Maximum steady state current at 25°C range from 1.3A to 3A
- Maximum power is 1.4W at 25°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| CQC, IEC, UL, VDE | ||
| 8.5 mm | ||
| 1.3 A | ||
| B57153S0 Series | ||
| 33 Ohm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
