P6SMB200A
Diode TVS Single Bi-Dir 171V 600W 2-Pin DO-214AA T/R

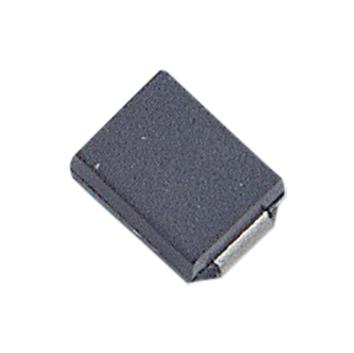

Click image to enlarge
Manufacturer:Taiwan Semiconductor
Product Category:
电路保护, TVS - 瞬态电压抑制器, 瞬态电压抑制器
Avnet Manufacturer Part #: P6SMB200A
Secondary Manufacturer Part#: P6SMB200A
-
RoHS 10 Compliant -
Tariff Charges
- Reverse standoff voltage VR is 171V
- Breakdown voltage VBR is 190V minimum and 210V maximum at 1mA
- Maximum reverse leakage is 1µA
- Maximum clamping voltage VC is 274V
- Maximum peak pulse current is 2.2A
- Power dissipation on infinite heat sink at TL=50°C is 5W
- Peak forward surge current IFSM is 100A
- Maximum instantaneous forward voltage is 5V
- Operating temperature range from -65°C to +175°C, IEC-61000-4-2 ESD 30KV (air), 30KV (contact)
- ESD protection of data lines with IEC 61000-4-2 and EFT protection with IEC 61000-4-4 standard
Technical Attributes
Find Similar Parts
| Description | Value |
|---|
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | null |
| Schedule B: | null |
Factory Lead Time:
