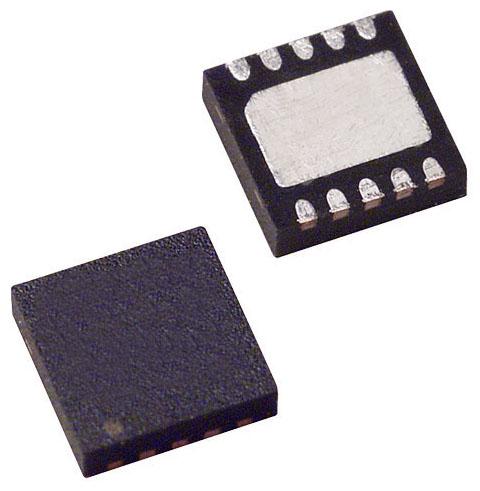

RCLAMP2504N.TCT

A RailClamp is a low capacitance TVS array designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and Lightning.The unique design incorporates surge rated, low capacitance steering diodes and a TVS diode in a single package. During transient conditions, the steering diodes direct the transient current to ground. The internal TVS diode clamps the transient voltage to a safe level. The low capacitance array configuration allows the user to protect up to four high-speed data lines.The RClamp3304N and RClamp2504N are constructed using Semtech’s proprietary EPD process technology. The EPD process provides low stand-off voltages with significant reductions in leakage current and capacitance over silicon-avalanche diode processes. They feature a true operating voltage of 2.5 volts and 3.3 volts for superior protection.These devices are in a 10-pin, RoHS/WEEE compliant, SLP2626P10 package. It measures 2.6 x 2.6 x 0.60mm. The leads are spaced at a pitch of 0.5mm and are finished with lead-free NiPdAu. The high surge capability (Ipp=25A, tp=8/20µs) means it can be used in high threat environments in applications such as Gigabit Ethernet, telecommunication lines, and digital video.

• Transient protection for high-speed data lines to
  • IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact)
  • IEC 61000-4-4 (EFT) 40A (5/50ns)
  • IEC 61000-4-5 (Lightning) 25A (8/20µs)
• Array of surge rated diodes with internal TVS Diode
• Small package saves board space
• Protects up to four I/O lines
• Low capacitance (<5pF) for high-speed interfaces
• Low leakage current and clamping voltage
• Low operating voltage: 2.5V and 3.3V
• Solid-state silicon-avalanche technology
