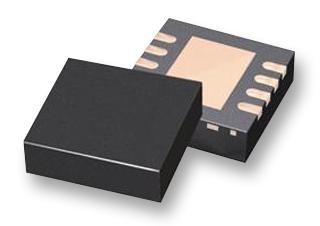

BR34E02NUX-3TR
EEPROM Serial-I2C (2-Wire) 2K-bit 256 x 8 1.8V/2.5V/3.3V/5V 8-Pin VSON Emboss T/R
BR34E02-3 is a 256×8bit electrically erasable PROM (based on serial presence detect).
- Wide operating voltage range is 1.7V to 5.5V, page write function (16byte)
- Two-wire serial interface, self-timed erase and write cycle, 2K capacity
- High reliability fine pattern CMOS technology, more than 1 million write cycles
- More than 40 years data retention, noise reduction filtered inputs in SCL / SDA
- Write protect feature (WP pin), prevention of write mistake at low voltage
- Low power consumption (write at 1.7V) is 0.4mA typical
- Low power consumption (read at 1.7V) is 0.1mA typical
- Low power consumption (standby at 1.7V) is 0.1µA typical
- Operating temperature is -40°C to +85°C
- Package style is VSON-8
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 400 kHz | ||
| 40 Year | ||
| VSON | ||
| Surface Mount | ||
| I2C | ||
| 256 x 8bit | ||
| 2 Kb | ||
| Surface Mount | ||
| 8 | ||
| 0.4 MHz | ||
| -40 to 85 °C | ||
| 85 °C | ||
| -40 °C | ||
| 8VSON | ||
| 8 | ||
| 2Kbit I2C Serial EEPROM | ||
| No | ||
| Industrial | ||
| VSON | ||
| 5.5 V | ||
| 1.7 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
