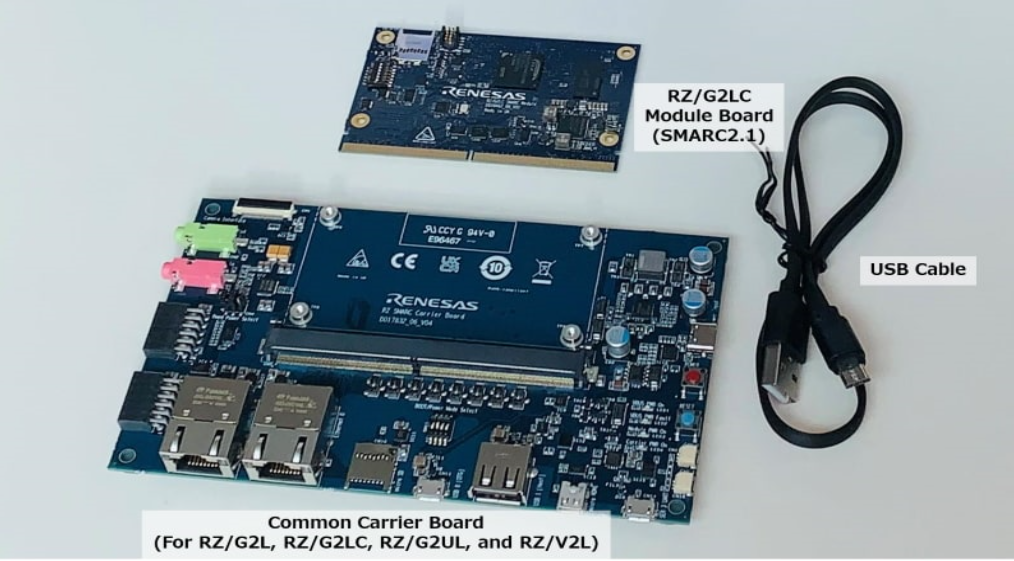

RTK9744L23S01000BE
Click image to enlarge
Manufacturer:Renesas Electronics
Product Category:
null
Avnet Manufacturer Part #: RTK9744L23S01000BE
Secondary Manufacturer Part#: RTK9744L23S01000BE
-
RoHS 10 Compliant -
Tariff Charges
- Cortex-A55 dual, Cortex-M33, non-secure
- Module board function ( 2GB DDR4 SDRAM, 512Mb QSPI flash memory, 64GB eMMC memory)
- The microSD card slot is implemented and used as an eSD for boot
- 5-output clock oscillator “5P35023” implemented and PMIC power supply “RAA215300” implemented
- FFC/FPC connector is mounted as standard for connection to serial interface for camera module
- Micro-HDMI connector via DSI/HDMI conversion MOD mounted as std for connection to serial interface
- Micro-AB receptacle, A receptacle are respectively mounted as std for connection to USB interface
- RJ45 connector is mounted as standard for software development and evaluation using Ethernet
- CAN connector is implemented for connection to CAN-Bus interface
- MicroSD card slot and 2 sockets for PMOD are implemented as an interface for RZ/G2L peripheral funts
Technical Attributes
Find Similar Parts
| Description | Value |
|---|
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | null |
| Schedule B: | null |
Factory Lead Time:
