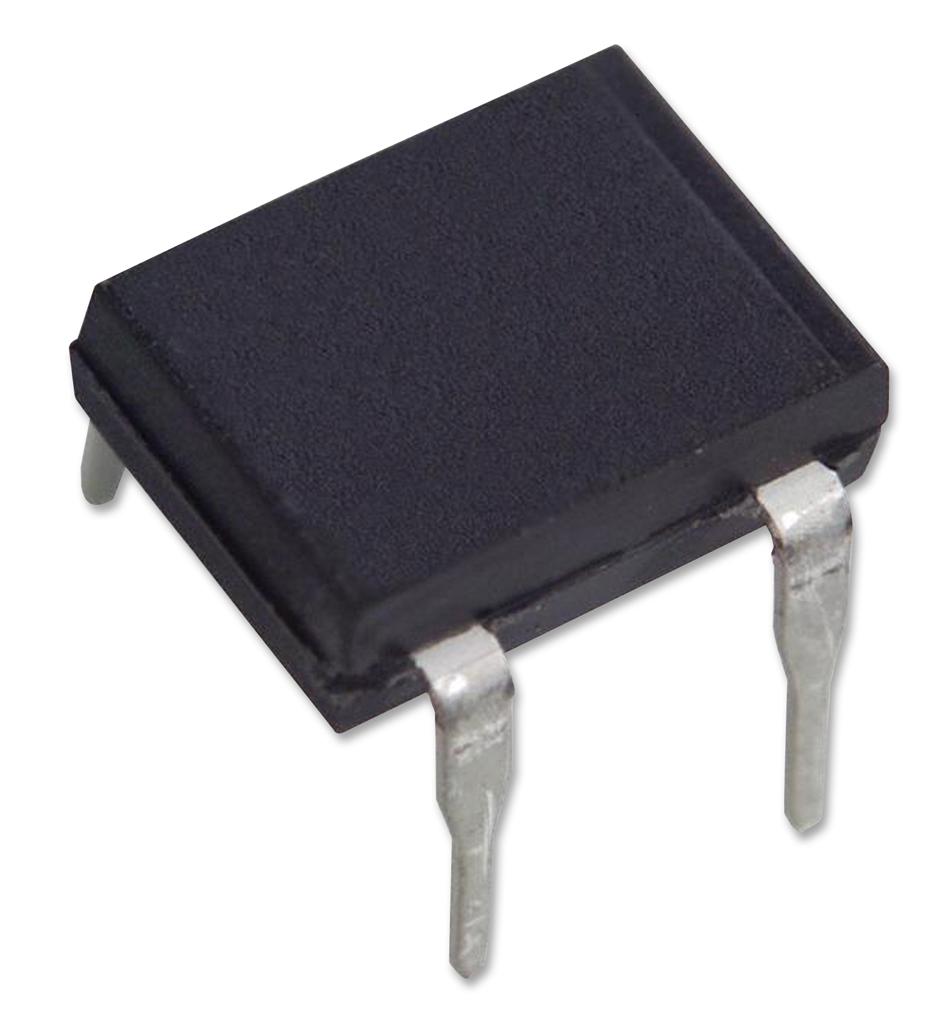

PS2505-1-A
Optocoupler Single DC-OUT 5000Vrms 4-Pin PDIP Magazine
Click image to enlarge
Manufacturer:Renesas Electronics
Product Category:
光电器件, 光耦, 晶体管与光电输出光耦
Avnet Manufacturer Part #: PS2505-1-A
Secondary Manufacturer Part#: PS2505-1-A
-
RoHS 10 Compliant -
Tariff Charges
PS2505-1-A is an optically coupled isolator containing a GaAs light emitting diodes and an NPN silicon phototransistor. Typical applications include power supply, telephone/FAX, FA/OA equipment and programmable logic controller.
- High isolation voltage (BV = 5000VRMS)
- AC input response type
- High collector to emitter voltage (VCEO = 80V)
- High-speed switching (tr = 3µs typical, tf = 5µs typical)
- UL1577, double protection
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 1000 mA | ||
| Tin-Bismuth | ||
| 260 | ||
| 50 mA | ||
| 80 V | ||
| 600@5mA % | ||
| Through Hole | ||
| MSL 1 - Unlimited | ||
| 1 | ||
| -55 to 100 °C | ||
| DC | ||
| 4PDIP | ||
| 4 | ||
| 4.6 x 6.5 x 3.5 | ||
| PDIP |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8541408000 |
| Schedule B: | 8541408000 |
Factory Lead Time:
