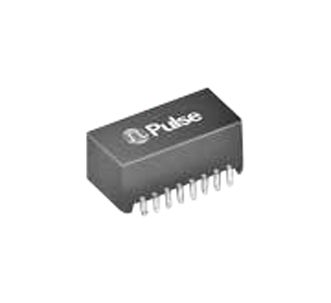

HX2019NLT

Name: HX2019NLT
Brand: Pulse Electronics
SKU: HX2019NLT
Availability: InStock

Telecom Transformer 100 Base-TX Single Port Ethernet 1:1 1500Vrms SMD T/R

Manufacturer:Pulse Electronics

Product Category: Transformers, Telecom Transformers

Avnet Manufacturer Part #: HX2019NLT

Secondary Manufacturer Part#: HX2019NLT

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Lead Style	Gull Wing
	Max Processing Temp	245
	Maximum DCR Primary Side	3.5 Ohm
	Maximum OCL Inductance	350 uH
	Minimum Isolation Voltage	1500 Vrms
	Mounting	Surface Mount
	MSL Level	MSL 1 - Unlimited
	Operating Temperature	-40 to 85 to 85 °C
	Package Type	16SMD
	Pin Count	16
	Product Depth	7.11 mm
	Product Dimensions	12.7 x 7.11 x 5.84 mm
	Product Height	5.97 mm
	Product Length	12.7 mm
	Supplier Package	SMD
	Transformer Type	100 Base-TX Single Port Ethernet
	Turns Ratio	1:1

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	null
ECCN:	EAR99
HTSN:	PARTS...
Schedule B:	PARTS...

In Stock : 0

Additional inventory

Factory Lead Time: 49 Weeks

Price for: Each

Quantity:

Min:3000 Mult:600
