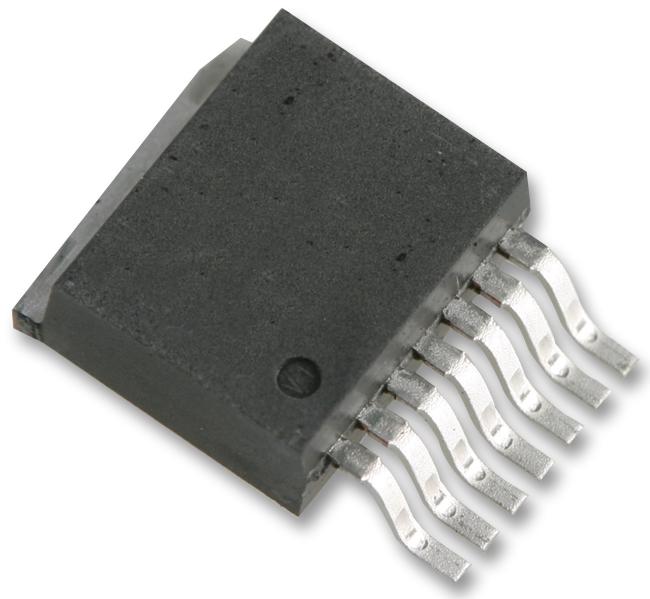

DPA425R
Conv DC-DC Single Step Down 36V to 75V 7-Pin(6+Tab) TO-263-C
Click image to enlarge
Manufacturer:Power Integrations
Product Category:
Power Management, Voltage Regulators, DC / DC Switching Regulators
Avnet Manufacturer Part #: DPA425R
Secondary Manufacturer Part#: DPA425R
-
RoHS 10 Compliant -
Tariff Charges
The DPA-Switch IC family is a highly integrated solution for DC-DC conversion applications with 16-75 VDC input. DPA-Switch uses the same proven topology as TOPSwitch, cost effectively integrating a power MOSFET, PWM control, fault protection and other control circuitry onto a single CMOS chip. High performance features are enabled with three user configurable pins. Hysteretic thermal shutdown is also provided. In addition, all critical parameters (i.e. current limit, frequency, PWM gain) have tight temperature and absolute tolerance, to simplify design and reduce system cost.
- Maximum Output Power (Forward)2 : 70 W
- Maximum Output Power (Flyback)2 : 52 W
- Highly Integrated Solution
- Eliminates up to 50 external components–saves space, cost
- Integrates 220 V high frequency MOSFET, PWM control
- Lower cost plastic DIP surface mount (G package) and through-hole (P package) options for designs =35 W
- Thermally efficient TO-263-7C (R package) option for high power applications
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 90 % | ||
| 75 V | ||
| 16 V | ||
| 75 V | ||
| 36 V | ||
| Surface Mount | ||
| MSL 4 - 72 hours | ||
| 1 | ||
| 7 | ||
| 1 | ||
| 150 °C | ||
| -40 °C | ||
| 6 A | ||
| Adjustable | ||
| 5 V | ||
| 7TO-263-C | ||
| 7 | ||
| 10.67 x 8.53 x 4.7 mm | ||
| TO-263-C | ||
| 300 kHz | ||
| 400 kHz |
