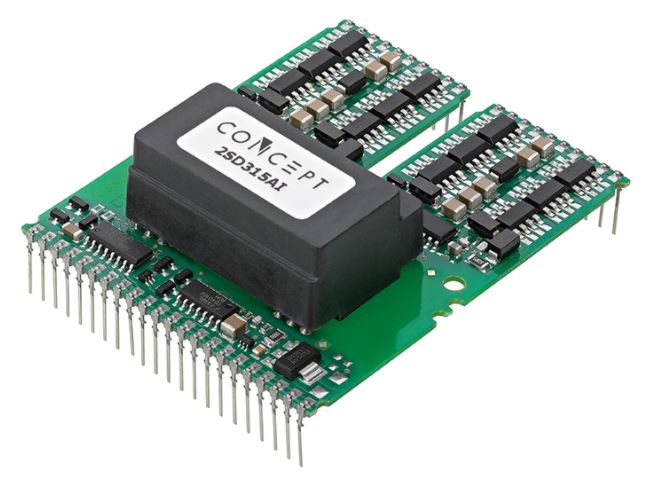

2SD315AI
Gate Driver, 2 Channels, Isolated, IGBT, MOSFET, 44 Pins, PCB
Click image to enlarge
Manufacturer:Power Integrations
Product Category:
Power Management, Drivers & Controllers, Gate Drivers
Avnet Manufacturer Part #: 2SD315AI
Secondary Manufacturer Part#: 2SD315AI
-
RoHS 10 Compliant -
Tariff Charges
The SCALE drivers from CONCEPT are based on a chip set that was developed specifically for the reliable driving and safe operation of IGBTs and power MOSFETs.
The name “SCALE” is an acronym for the most outstanding properties of the SCALE series of drivers: SCALE = Scaleable, Compact, All purpose, Low cost and Easy to use.
The SCALE driver is a winning project of the competition organized by “Technology Center Switzerland 1998”. And ABB Switzerland AG honored the development of the SCALE driver by distinguishing it as the “best power electronics project in 1998”.
- Suitable for 1200V and 1700V IGBTs
- Short circuit and overcurrent protection
- Extremely reliable, long service life
- High gate current of ±15A
- Electrical isolation of 4000VAC
- Electrically isolated status acknowledgement
- Monitoring of power supply and self-monitoring
- Switching frequency DC to >100kHz
- Duty cycle: 0... 100%
- High dv/dt immunity, guaranteed >100,000V/µs
- Complete with DC/DC converter
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Half | ||
| Non-Inverting | ||
| 80, 130 ns | ||
| 100, 160 ns | ||
| 350 ns | ||
| 300 ns | ||
| Through Hole | ||
| 2 | ||
| 44 | ||
| 2 | ||
| 2 | ||
| 470 mA | ||
| -40 to 85 °C | ||
| 85 °C | ||
| -40 °C | ||
| 18 A | ||
| 44 | ||
| 57.2 x 72.4 x 22 mm | ||
| 0 | ||
| Industrial | ||
| 15 V |
