TQ2-5V
Signal Relay, 5 VDC, DPDT, 1 A, TQ, Through Hole, Non Latching

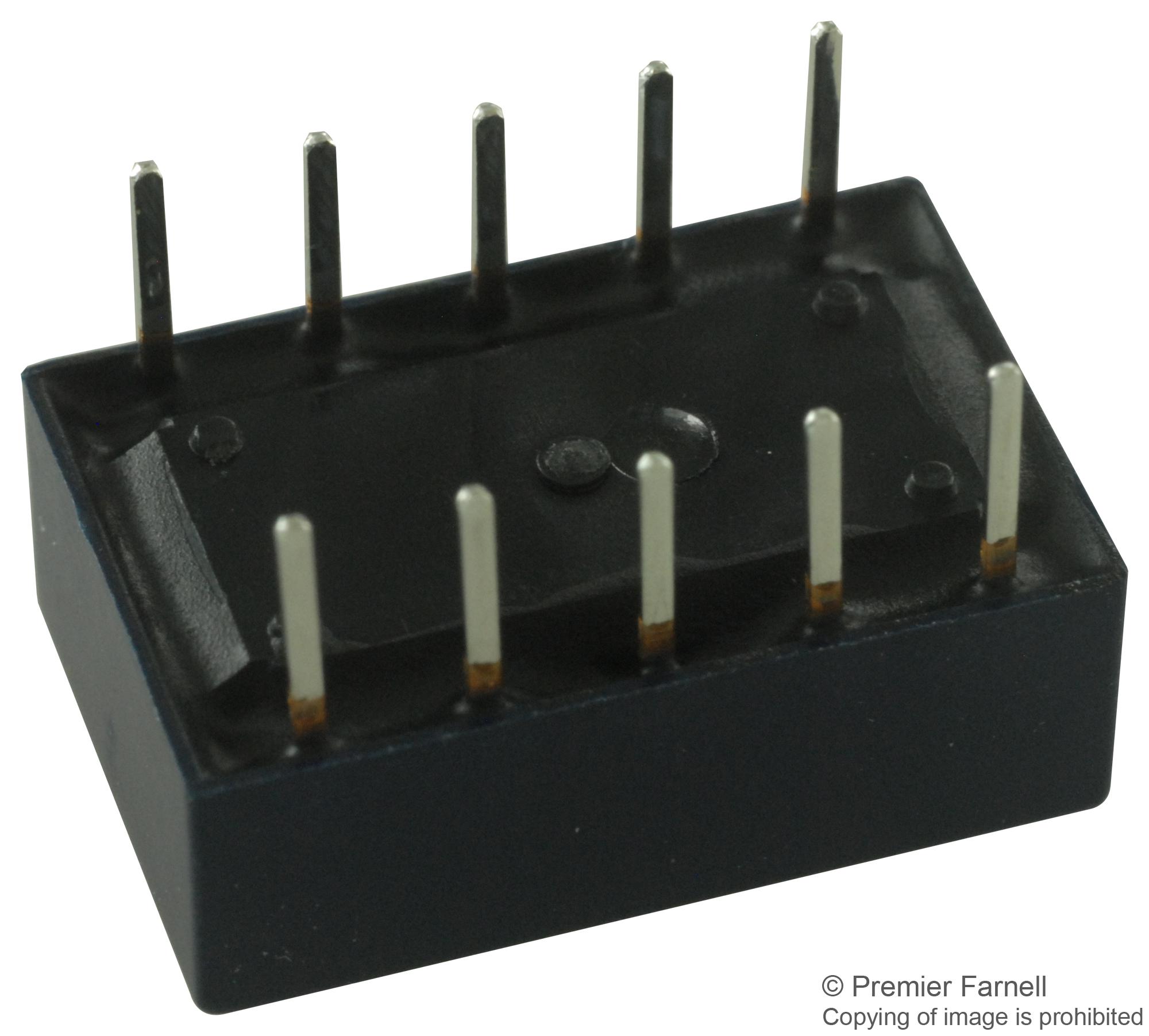

Click image to enlarge
Manufacturer:Panasonic
Product Category:
Electromechanical, Relays, Signal Relays
Avnet Manufacturer Part #: TQ2-5V
Secondary Manufacturer Part#: TQ2-5V
-
RoHS 10 Compliant -
Tariff Charges
The TQ series from Panasonic are through hole signal relays. These mechanical relays are mainly used in signal control applications such as communications, measurement equipment, OA equipment and industrial machines.
- 14mm x 9mm x 5mm dimension
- Maximum switching capacity of 1A at 110VDC, 125VAC
- DPDT contact configuration
- Selectable DC coil voltage of 3VDC, 4.5VDC, 5VDC, 6VDC, 9VDC, 12VDC, 24VDC and 48VDC
- Single side stable, 1 coil latching, 2 coil latching options available
- 140mW power consumption
- 1KV of breakdown voltage between contacts and coil
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 28.08 mA | ||
| DPDT | ||
| Gold Clad|Silver | ||
| 5 V | ||
| Tin-Silver-Copper | ||
| 260 °C | ||
| 125 V | ||
| 1 A | ||
| 1 A | ||
| 110 V | ||
| 3.75 Vdc | ||
| 30|62.5 W|VA | ||
| Through Hole | ||
| -40 to 70 °C | ||
| 10 | ||
| 14 x 9 x 5 mm mm | ||
| TQ | ||
| PC Pin |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
