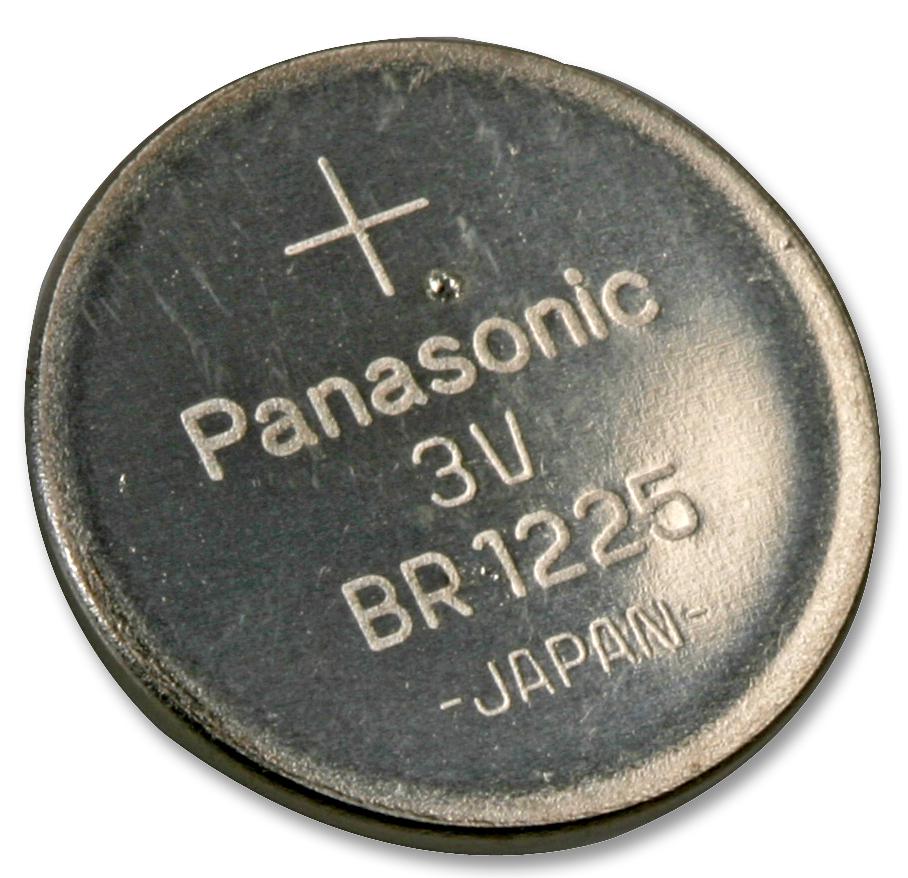

BR-1225/BN
Battery, 3 V, 1225, Lithium Poly Carbon Monofluoride, 48 mAh, Flat Top, 1
Click image to enlarge
Manufacturer:Panasonic
Product Category:
Batteries, Non-Rechargeable Batteries
Avnet Manufacturer Part #: BR-1225/BN
Secondary Manufacturer Part#: BR-1225/BN
-
RoHS 10 Compliant -
Tariff Charges
BR-1225/BN BR series coin-type lithium battery exhibits stable performance after long periods in storage due to low self-discharge characteristics. Applications includes commercial equipment (communication/measurement devices), electricity meters, memory backup (security cameras, security sensors) and automotive electronic components(ETC).
- Developed with exclusive Panasonic technology
- Primarily used for memory�backup power in low�drain applications
- Nominal voltage is 3V and nominal capacity is 48mAh
- Continuous drain current is 0.03mA
- Diameter is 12.5mm maximum and height is 2.5mm maximum (without tabs)
- Operating temperature range from �30°C to +85°C
- Weight is approximately 0.8g (without tabs)
- IEC 60086-4, UL 1642 certified
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Tin | ||
| Through Hole | ||
| -30 to 80 °C | ||
| 2 | ||
| 12.5 x 2.5 | ||
| 3.15 mm | ||
| 0.8 gram | ||
| Industrial | ||
| Coin |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
