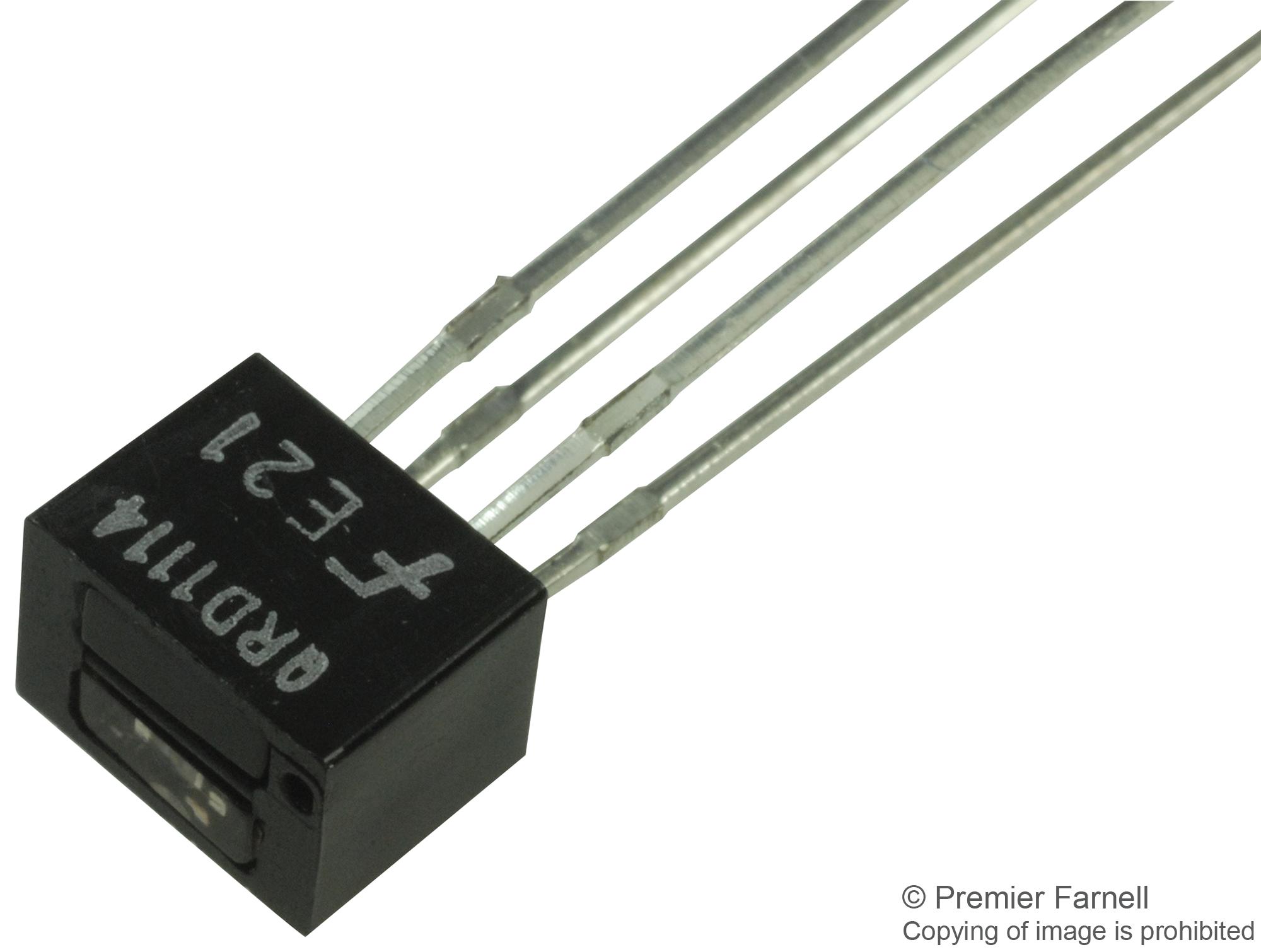

QRD1114
Reflective Object Sensor. ONSSPCISTNJZ8E4V;
Click image to enlarge
Manufacturer:onsemi
Product Category:
Optoelectronics, Infrared - IR Components, Photointerrupters
Avnet Manufacturer Part #: QRD1114
Secondary Manufacturer Part#: QRD1114
-
RoHS 10 Compliant -
Tariff Charges
The QRD1114 is a Reflective Object Sensor consists of an infrared emitting diode and an NPN silicon photodarlington mounted side by side in a black plastic housing. The on-axis radiation of the emitter and the on-axis response of the detector are both perpendicular to the face of the QRD1114. The photodarlington responds to radiation emitted from the diode only when a reflective object or surface is in the field of view of the detector.
- Phototransistor Output
- No Contact Surface Sensing
- Unfocused for Sensing Diffused Surfaces
- Daylight Filter on Sensor
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Matte Tin | ||
| 260 | ||
| 30 V | ||
| 50 mA | ||
| 100 mW | ||
| Through Hole | ||
| 1 | ||
| -40 to 85 °C | ||
| 4 | ||
| 4 | ||
| 6.1 x 4.39 x 4.65 mm | ||
| Reflective | ||
| 940 nm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8541408000 |
| Schedule B: | 8541408000 |
Factory Lead Time:
