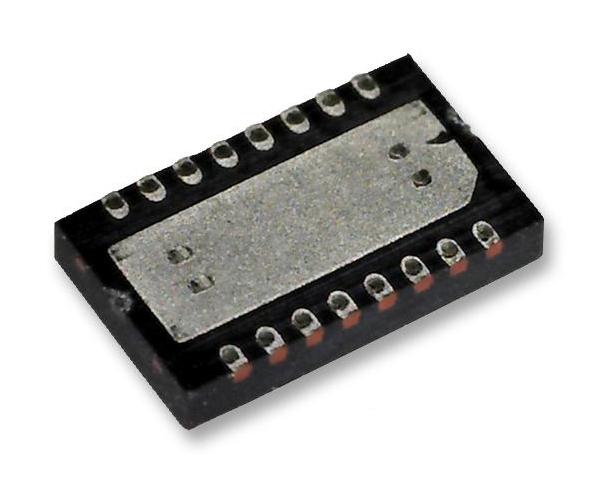

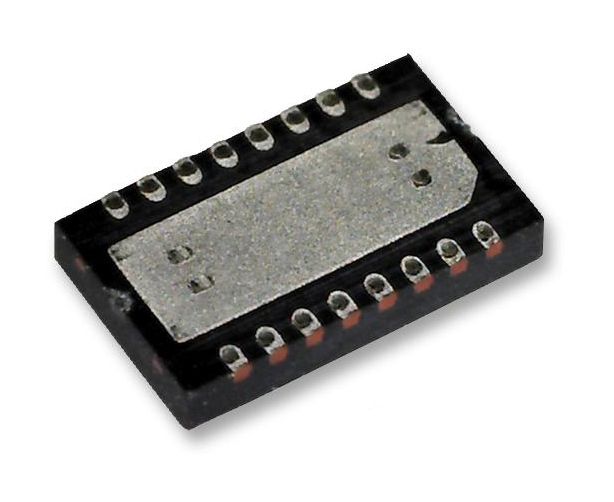

NUF8401MNT4G
EMI Filter, 8-Channel, ESD Protection, 275 MHz, DFN-16
Click image to enlarge
Manufacturer:onsemi
Product Category:
Filters, EMI/RFI Filters
Avnet Manufacturer Part #: NUF8401MNT4G
Secondary Manufacturer Part#: NUF8401MNT4G
-
RoHS 10 Compliant -
Tariff Charges
This device is an 8 line EMI Filter array for wireless applications.Greater than -25 dB attenuation is obtained at frequencies from 800 MHz to 2.2 GHz.It also offers ESD protection-clamping transisents from static discharges.ESD protection is provided across all capacitors.
- EMI Filtering and ESD Protection
- Integration of 40 Discrete Components
- Compliance with IEC61000-4-2 (Level 4) > 14.0 kV (Contact)
- DFN Package, 1.6 x 4.0 mm
- Moisture Sensitivity Level 1
- ESD Ratings:Machine Model = C and Human Body Model = 3B
- This is a Pb-Free Device
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Matte Tin | ||
| 260 | ||
| 25 dB | ||
| Surface Mount | ||
| MSL 1 - Unlimited | ||
| 800, 2200 MHz | ||
| -40 to 85 °C | ||
| 1.6 mm | ||
| 4 x 1.6 x 1 mm | ||
| 1 mm | ||
| 4 mm | ||
| No | ||
| Flat Style | ||
| 8 Channel EMI Filter and Integrated ESD Protection |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
