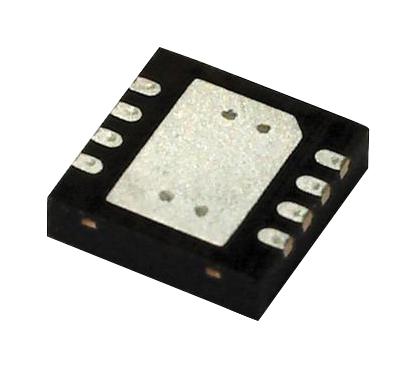

NUF2114MNT1G
Emi Filter, Audio, with ESD Protection. ONSSPCPRTCNIW2U6D;
Click image to enlarge
Manufacturer:onsemi
Product Category:
滤波器, EMI/RFI滤波器
Avnet Manufacturer Part #: NUF2114MNT1G
Secondary Manufacturer Part#: NUF2114MNT1G
-
RoHS 10 Compliant -
Tariff Charges
This device is a 2 line audio EMI filter array designed for speaker applications.It offers greater than -30 dB attenuation at frequencies from 900 MHz to 3.0 GHz.This device also offers ESD protection-clamping transients from static discharges and ESD protection is provided across all capacitors.
- Provides EMI Filtering and ESD Protection
- Integration of 10 Discretes
- Compliance with IEC61000-4-2 (Level 4), 30 kV (Contact)
- DFN8, 2x2 mm Package
- Moisture Sensitivity Level 1
- ESD Ratings:Machine Model=C and Human Body Model=3B
- Matching Series Impedances for Speaker Applications
- This is a Pb-Free Device
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Matte Tin | ||
| 260 | ||
| 30 dB | ||
| Surface Mount | ||
| MSL 1 - Unlimited | ||
| 900, 3000 MHz | ||
| -40 to 85 °C | ||
| 2 mm | ||
| 2 x 2 x 1 mm | ||
| 1 mm | ||
| 2 mm | ||
| No | ||
| Flat Style | ||
| 2 Line Audio EMI Filter and ESD Protection |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
